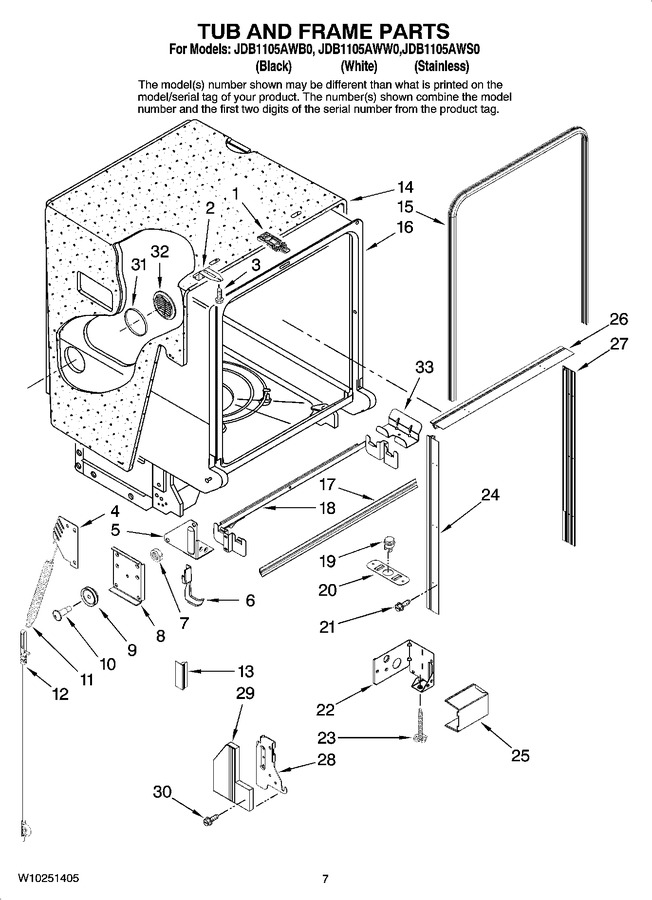

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10119337		Strike, Door				$ 23.34
2	99002648		Bracket, Cabinet Mounting		Appelez-nous	-
3	6-912799		Screw		Appelez-nous	-
4	99002610		Bracket, Spring Adjustment		Appelez-nous	-
5	99002636		Bracket, Support		Appelez-nous	-
6	99003039		Trim, Corner Edge (right)				$ 5.84
6	99003038		Trim, Corner Edge (left)				$ 5.84
7	99003688		Nut				$ 5.51
8	W10173920		Bracket, Cable		Appelez-nous	-
9	99002608		Roller, Cable Bracket				$ 9.46
10	99003687		Bolt, Shoulder				$ 5.33
11	WP99003118		Spring, Door   (Replaces: 99003118)			Immediately	$ 23.18
12	WP99003446		Door Cable Assy.   (Replaces: 99003446)			Immediately	$ 7.90
13	99002703		Gap Seal, Toe Kick (white)				$ 24.09
13	99002701		Gap Seal, Toe Kick (black)				$ 34.28
14	WPW10223013		Insulation, Tub   (Replaces: 99002849)				$ 83.60
15	WP99003337		Seal, Door   (Replaces: 99003337)			Immediately	$ 138.53
16	W10142298		Tub Assembly (not Serviced)		Appelez-nous	-
17	WP99003041		Trim, Tub Edge (bottom)   (Replaces: 99003041)			Immediately	$ 89.01
18	W10167660		Bracket, Support (rear)				$ 36.18
19	99002633		Thermostat, Limiting				$ 33.69
20	W10167658		Clip, Thermostat		Appelez-nous	-
21	99002692		Screw, Trim Mounting				$ 5.02
22	99002637		Bracket, Junction Box		Appelez-nous	-
23	WPW10143258		Leg, Leveling   (Replaces: W10143258)				$ 13.81
24	W10164700		Strip,trim Left		Appelez-nous	-
25	99002638		Cover, Junction Box		Appelez-nous	-
26	W10164702		Strip,trim Top		Appelez-nous	-
27	W10164701		Strip,trim Right		Appelez-nous	-
28	W10117484		Support, Hinge (right)				$ 103.72
28	W10117485		Support, Hinge (left)				$ 99.12
29	W10174581		Backer, Hinge (right)				$ 10.73
29	W10174569		Backer, Hinge (left)				$ 8.51
30	99003155		Screw		Appelez-nous	-
31	99002150		Seal, Air/water Inlet				$ 8.72
32	6-918397		Grill, Air/water Inlet				$ 35.58
33	W10167916		Clamp, Rear Support		Appelez-nous	-
