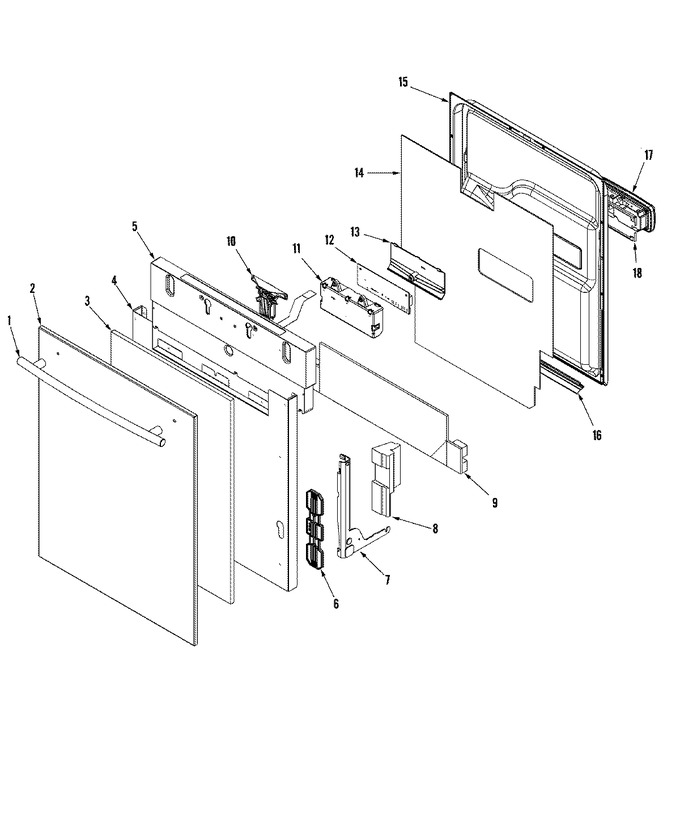

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 99003154 | Screw-truss Head 1/4-20 T20 | 10 |
|
- | ||||
| 1 | 99003088 | Bar, Towel | 10 |
|
- | ||||
| 1 | 99003089 | Studs, Towel Bar | 10 |
|
$ 52.71 | ||||
| 1 | W10167659 | Plate, Towel Bar Back (Replaces: 99003097) | 10 |
|
$ 21.02 | ||||
| 2 | 99003338 | Panel, Decorator (bsq) | 10 |
|
- | ||||
| 3 | 99003093 | Pad, Foam | 10 |
|
- | ||||
| 4 | 99002934 | Damper (6``x 18``) | 10 |
|
- | ||||
| 4 | 99003094 | Support, Inner Door (blk) | 10 |
|
- | ||||
| 5 | 99003139 | Panel, Control (blk) | 10 |
|
- | ||||
| 5 | 99003096 | Fastener, Panel | 10 |
|
$ 19.08 | ||||
| 5 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 | |||
| 6 | 99003095 | Anchor, Panel Fastener | 10 |
|
$ 25.60 | ||||
| 6 | 99003096 | Fastener, Panel | 10 |
|
$ 19.08 | ||||
| 7 | 99001075 | Screw | 10 |
|
$ 5.81 | ||||
| 7 | 99002929 | Bracket, Hinge (lt) | 10 |
|
- | ||||
| 7 | 99003049 | Wrap, Foam | 10 |
|
$ 18.96 | ||||
| 7 | WPW10118637 | Bracket, Hinge (rt) (Replaces: 99002930) | 10 |
|
$ 233.73 | ||||
| 8 | 99003046 | Block, Foam (lt) | 10 |
|
- | ||||
| 8 | 99003047 | Block, Foam (rt) | 10 |
|
- | ||||
| 9 | 99003048 | Barrier, Foam | 10 |
|
- | ||||
| 10 | 99002751 | Switch, Door | 10 |
|
$ 23.02 | ||||
| 10 | WPW10275768 | Latch Assembly (Replaces: 99002580) | 10 |
|
Immediately | $ 79.15 | |||
| 11 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 | |||
| 11 | 99002576 | Housing, Board (base) | 10 |
|
$ 25.18 | ||||
| 12 | 99003158 | Board, Control | 10 |
|
- | ||||
| 12 | 99003432 | Board, Control | 29 |
|
- | ||||
| 12 | 99003614 | Board, Control | 33 |
|
- | ||||
| 13 | 99002575 | Housing, Board (top) | 10 |
|
$ 20.11 | ||||
| 13 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 | |||
| 14 | 99003044 | Insulation, Door | 10 |
|
$ 26.70 | ||||
| 15 | Y912620 | Screw | 10 |
|
$ 5.48 | ||||
| 15 | 99003140 | Door, Inner (w/damper) | 10 |
|
- | ||||
| 16 | 99003045 | Seal, Door (btm) | 10 |
|
$ 38.59 | ||||
| 17 | 99003059 | Rinse Aid/detergent Dispenser | 10 |
|
- | ||||
| 17 | 99002270 | Seal, Base | 10 |
|
$ 59.76 | ||||
| 17 | 99003060 | Knob, Rinse Aid (w/o-ring) | 10 |
|
$ 19.99 | ||||
| 18 | 99002465 | Bracket, Dispenser | 10 |
|
- | ||||
| 18 | WP33002917 | Screw, No.8x1/2 Hex Washer Head (Replaces: 912615) | 10 |
|
Immediately | $ 6.90 |
