01 - Control Panel, Literature
02 - Door
03 - Interior And Ventilation

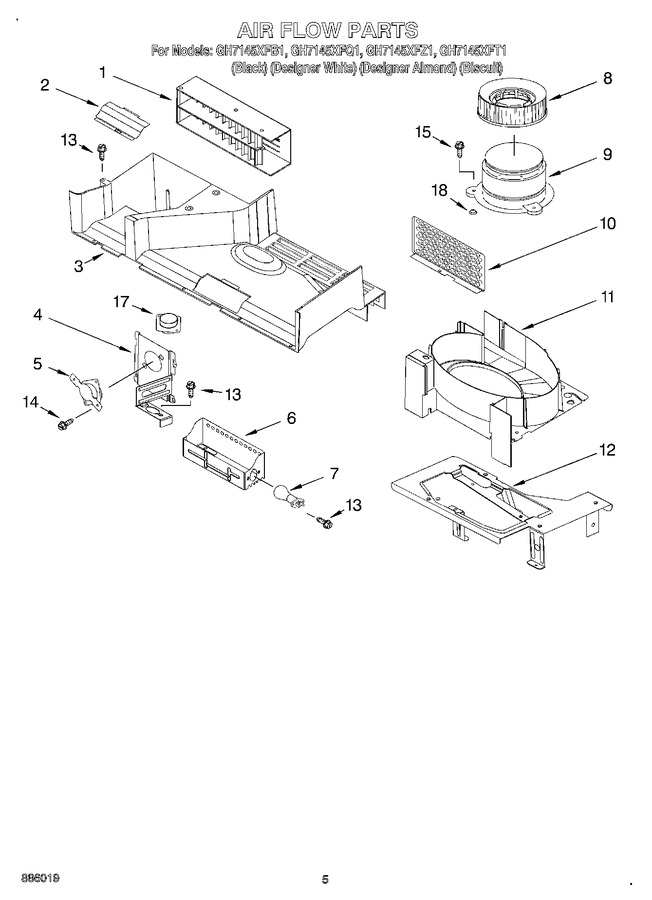

04 - Air Flow
05 - Magnetron And Turntable
06 - Cabinet And Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4393807 | Deflector, Air |
|
- | |||||
| 2 | 8169557 | Reflector, Air |
|
- | |||||
| 3 | 8169465 | Duct, Air |
|
- | |||||
| 4 | 8169558 | Bracket, Thermostat |
|
- | |||||
| 5 | 4393945 | Thermostat |
|
- | |||||
| 6 | 4393680 | Housing, Lamp |
|
- | |||||
| 7 | 8206232A | Lamp (Replaces: 4393681) |
|
Immediately | $ 6.61 | ||||
| 8 | 4393682 | Wheel, Fan |
|
- | |||||
| 9 | 4393789 | Motor, Fan |
|
- | |||||
| 10 | 8169559 | Shield |
|
- | |||||
| 11 | 8169563 | Housing, Fan |
|
- | |||||
| 13 | 8169474 | Screw |
|
$ 8.51 | |||||
| 14 | 8169478 | Screw |
|
- | |||||
| 15 | 4393830 | Screw |
|
- | |||||
| 17 | 4393808 | Humidity, Sensor |
|
- | |||||
| 18 | 8169569 | Cushion, Mtr |
|
- |
