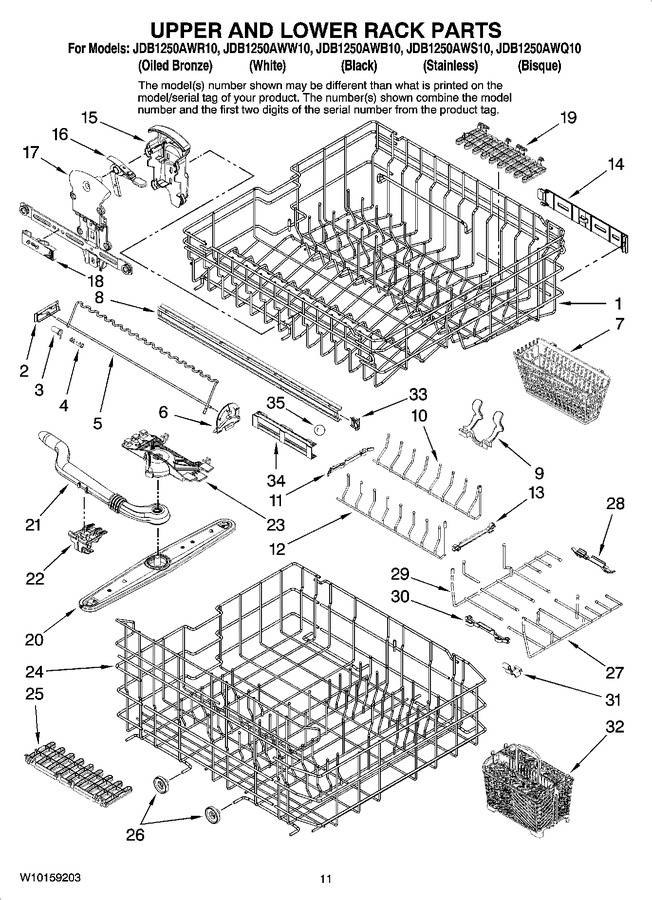

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper And Lower Rack Parts


10 - Upper Wash And Rinse Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10120527		Dishrack, Upper		Appelez-nous	-
2	99003109		Rear, Varilock		Appelez-nous	-
3	99003111		Cup, Varilock		Appelez-nous	-
4	99002715		Spring, Varilock		Appelez-nous	-
5	99003110		Support, Varilock		Appelez-nous	-
6	99003108		Front, Varilock		Appelez-nous	-
7	99003117		Basket, Auxillary		Appelez-nous	-
8	99003066		Rail, Inner Slide		Appelez-nous	-
9	99003107		Clip, Cup		Appelez-nous	-
10	99003104		Tine, Fold Away		Appelez-nous	-
11	WP99003106		Latch, Fold Away   (Replaces: 99003106)			Immediately	$ 7.61
12	99003103		Tine, Fold Away		Appelez-nous	-
13	WP99003105		Pivot, Fold Away   (Replaces: 99003105)			Immediately	$ 11.13
14	99003063		Guard, Rack (high Side)				$ 6.23
14	99003064		Guard, Rack (low Side)				$ 6.06
15	99003191		Cover, Rack Adjuster				$ 39.36
16	99003192		Lever, Rack Adjuster		Appelez-nous	-
17	WPW10153533		Rack, Adjuster (left)   (Replaces: 99003582)			Immediately	$ 137.39
17	99003583		Rack, Adjuster (right)		Appelez-nous	-
18	99003193		Stabilizer, Rack Adjuster				$ 6.22
19	99003065		Shelf, Cup (upper)				$ 9.71
20	99003070		Arm, Wash				$ 32.43
21	99003142		Wash Manifold Assembly		Appelez-nous	-
22	99003071		Clip, Manifold (back)				$ 19.68
23	99003072		Clip, Manifold (front)				$ 5.25
24	W10120551		Dishrack, Lower		Appelez-nous	-
25	99003074		Shelf, Cup (lower)				$ 5.02
26	WP99003149		Wheel Assembly   (Replaces: 99003149)			Immediately	$ 11.48
27	99003112		Tine, Convertible		Appelez-nous	-
28	WP99003003		Pivot, Tine   (Replaces: 99003114)			Immediately	$ 7.22
29	99003113		Tine, Convertible (rear)		Appelez-nous	-
30	99003115		Latch, Convertible Tine				$ 21.25
31	99003116		Latch, Secondary Convertible Tine		Appelez-nous	-
32	WP6-918873		Basket, Silverware   (Replaces: 99003100)			Immediately	$ 54.28
33	WP99003282		Stop, Rail   (Replaces: 99003282)			Immediately	$ 7.04
34	99003069		Cage, Ball Bearing				$ 6.26
35	99003068		Bearing, Ball				$ 5.83
