Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10260101 Energy Guide Appelez-nous -
1 W10157785 Guide, Use & Care Appelez-nous -
1 W10158012 Instructions, Installation Appelez-nous -
2 99002693 Insulation, Door Appelez-nous -
3 99003048 Barrier, Foam Appelez-nous -
4 99003046 Block, Foam (left) Appelez-nous -
4 99003047 Block, Foam (right) Appelez-nous -
5 99003049 Wrap, Foam Special Order $ 18.96

6 W10118638 Bracket, Hinge (left) Special Order $ 109.77

6 WPW10118637 Bracket, Hinge (right)   (Replaces: W10118637) Special Order $ 233.73

7 99001075 Screw Special Order $ 5.81

8 99003094 Support, Inner Door Appelez-nous -
9 99003095 Anchor, Panel Fastener Special Order $ 25.60

10 99003093 Pad, Foam Appelez-nous -
11 W10166535 Panel, Front (stainless) Appelez-nous -
11 99003090 Panel, Front (black) Appelez-nous -
11 99003092 Panel, Front (white) Appelez-nous -
11 W10111560 Panel, Front (oiled Bronze) Appelez-nous -
11 99003486 Panel, Front (s.steel(pro-style)) Appelez-nous -
12 WP6-912366 Screw (black)   (Replaces: 912366) Special Order $ 7.29

12 99001194 Screw (white) Special Order $ 6.18

13 W10167659 Plate, Handle (black) Special Order $ 21.02

14 99003125 Handle, Door (s.steel (pro- Style Assy)) Appelez-nous -
14 W10191101 Handle, Door (s.steel) Appelez-nous -
15 WP6-920587 Insulation, Toe Panel   (Replaces: 99002414) Special Order $ 6.35

16 99002694 Damper, Toe Panel (black) Special Order $ 20.14

16 99002698 Damper, Toe Panel (white) Special Order $ 18.96

17 99002766 Panel, Toe (includes Item 16) (white) Appelez-nous -
17 99002765 Panel, Toe (includes Item 16) (black) Appelez-nous -
18 99002593 Support, Front (white) Appelez-nous -
18 99002591 Support, Front (black) Appelez-nous -
19 Y6918667 Stud, Handle Appelez-nous -
20 99003154 Screw Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

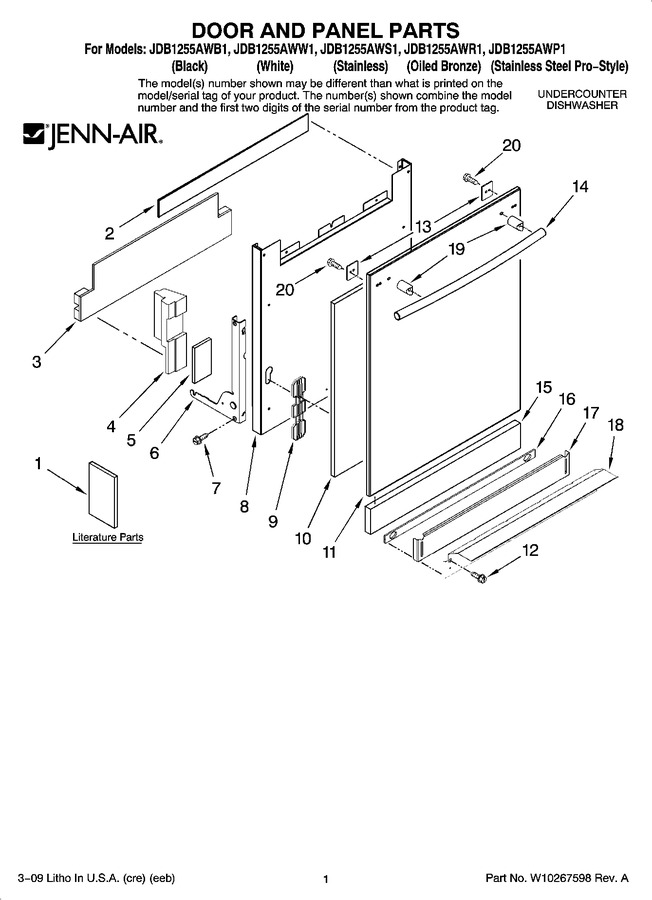

Diagram for JDB1255AWB1
