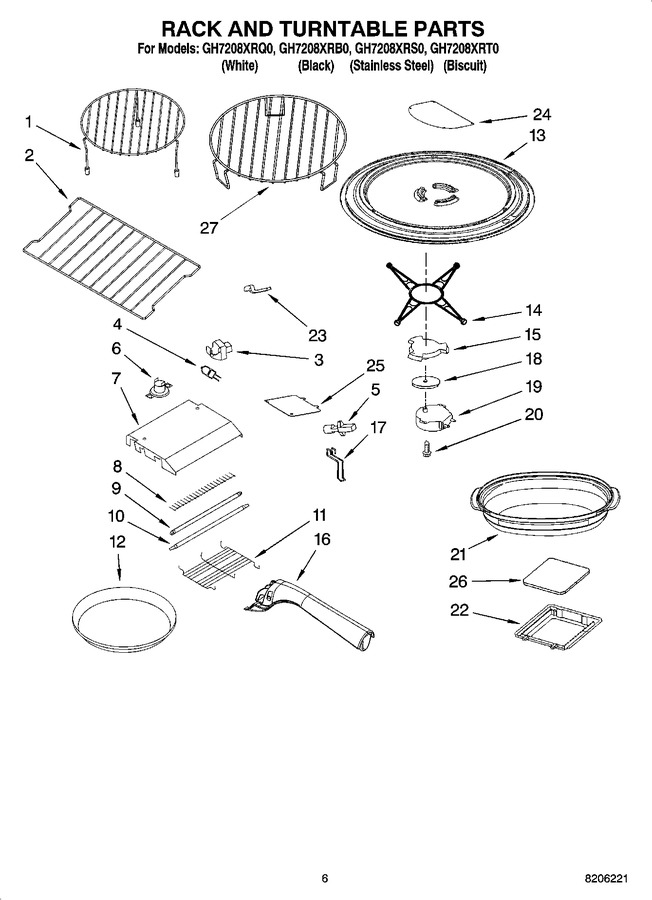

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206264		Rack, Grill		Appelez-nous	-
2	8206117		Rack		Appelez-nous	-
3	W10315274		Hook, Rack (4)   (Replaces: 8206118)				$ 39.68
4	8204670		Lamp, Cavity			Immediately	$ 25.94
5	8206208		Holder, Lamp		Appelez-nous	-
6	W11553234		Thermostat, Grill   (Replaces: 8206025)				$ 37.45
7	8206024		Cover, Insulation (grill)		Appelez-nous	-
8	WP8184837		Browner, Halogen   (Replaces: 8184837)				$ 273.75
9	W10510202		Quartz Tube, Soft Start   (Replaces: 8184838)			Immediately	$ 35.41
10	WPW10510203		Heater, Quartz   (Replaces: 8184839)				$ 196.97
11	8205239		Cover, Protector		Appelez-nous	-
12	W10748097		Plate, Crisp   (Replaces: 8205996)				$ 47.57
13	8205992		Turntable				$ 92.28
14	8205993		Ring, Turntable		Appelez-nous	-
15	8205994		Driver, Turntable				$ 29.54
16	W10851464		Handle   (Replaces: 8204652)				$ 22.35
17	8206034		Clip, Cavity Lamp		Appelez-nous	-
18	8184109		Spacer   (Replaces: 8206101)				$ 6.26
19	8206102		Motor, Turntable		Appelez-nous	-
20	4393832		Screw				$ 11.55
21	8205262RB		Steamer   (Replaces: 8204727)				$ 51.33
22	8169646		Frame, Glass				$ 6.64
23	8206116		Spacer		Appelez-nous	-
24	8206066		Cover, Inlet		Appelez-nous	-
25	8206032		Lid, Lamp		Appelez-nous	-
26	8169499		Glass, Lamp		Appelez-nous	-
27	8205995		Rack, Convection		Appelez-nous	-
