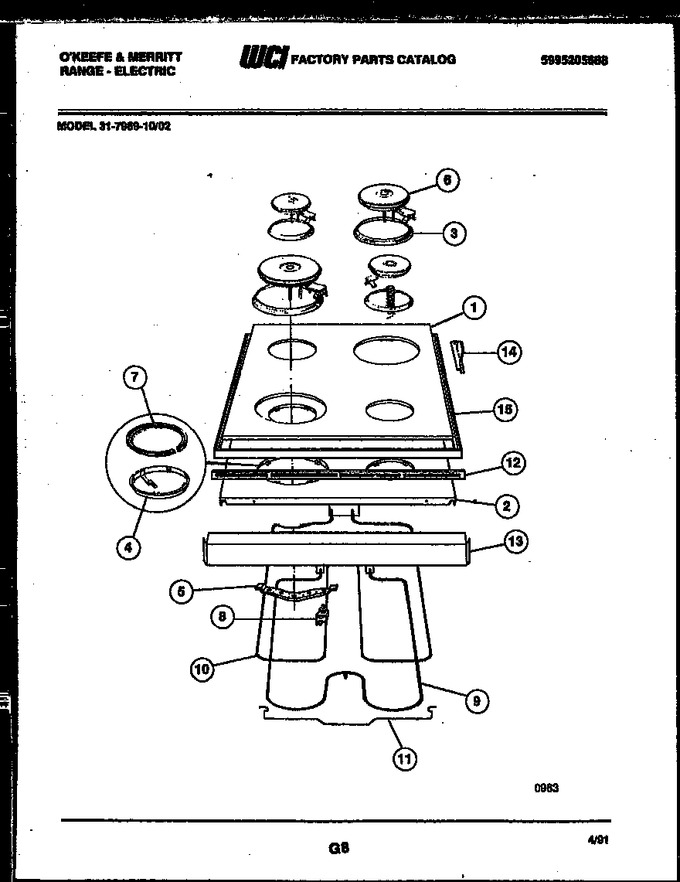

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204831 | Glass - Main Top |
|
- | |||||
| 2 | 3204833 | Panel - Glass Support |
|
- | |||||
| 3 | 5303051334 | Trim-ring Outer 6`` (2) |
|
- | |||||
| 4 | 3051338 | Trim-ring Inner 8`` (2) |
|
- | |||||
| 4 | 3051337 | Trim-ring Inner 6`` (2) |
|
- | |||||
| 5 | 3051121 | Channel-top Element Mounting 8`` (2) |
|
- | |||||
| 5 | 3051122 | Channel-top Element Mounting 6`` (2) |
|
- | |||||
| 6 | 5303051142 | Element-top 6`` (2) |
|
- | |||||
| 7 | 3018330 | Seal-top Element 6`` (2) |
|
- | |||||
| 8 | 3051885 | Switch-thermal Protector (4) |
|
- | |||||
| 9 | 316075103 | Element-bake (Replaces: 3203534) |
|
Immediately | $ 42.36 | ||||
| 10 | 5303051140 | Element-broil |
|
$ 202.71 | |||||
| 11 | 3051373 | Support-broil Element |
|
- | |||||
| 12 | 355T377S01 | Trim-main Top Front |
|
- | |||||
| 13 | 5303206607 | Panel-manifold |
|
- | |||||
| 14 | 08067746 | Bracket-main Top Hinge Lh |
|
- | |||||
| 15 | 3204894 | Trim-main Top Frame |
|
- | |||||
| 14A | 08067747 | Bracket-main Top Hinge Rh |
|
- | |||||
| 3A | 3051335 | Trim-ring Outer 8`` (2) |
|
- | |||||
| 6A | 3204830 | Element-top 8`` (2) |
|
- | |||||
| 7A | 3018331 | Seal-top Element 8`` (2) |
|
- |
