SELECT A DIAGRAM

01 - Control Board Parts


02 - Door Parts


03 - Ventilation Parts


04 - Interior And Air Flow Parts


05 - Rack And Turntable Parts


06 - Cabinet And Installation Parts


07 - Convection Parts

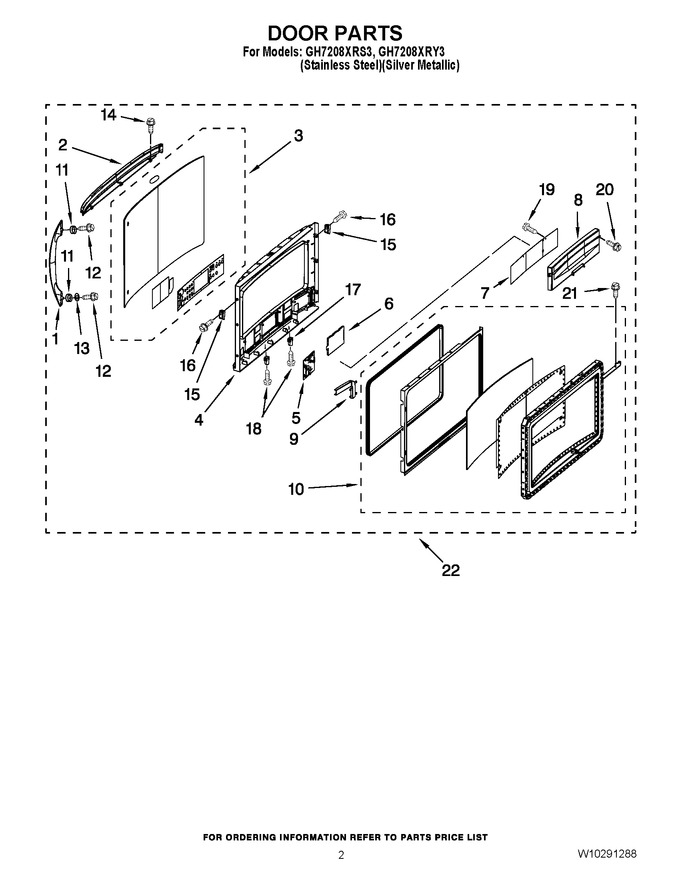

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8206123		Handle (stainless Steel)				$ 158.46
2	W10291311		Trim, Door (stainless Steel)		Appelez-nous	-
3	8206149		Door Control Assy (black/stainless)				$ 341.30
3	W10115584		Door Control Assy (universal Silver)		Appelez-nous	-
4	W10245708		Outer Door Frame (stainless Steel)		Appelez-nous	-
5	W10233387		Board, User (interface)		Appelez-nous	-
6	W10244767		Lcd Module		Appelez-nous	-
7	8206163		Deflector, Air Guide		Appelez-nous	-
8	W10291312		Air Guide		Appelez-nous	-
9	W10115591		Cable Cover, Door		Appelez-nous	-
10	8206139		Inner Door		Appelez-nous	-
11	8206166		Gasket		Appelez-nous	-
12	8206167		Screw		Appelez-nous	-
13	8206168		Washer		Appelez-nous	-
14	4393827		Screw		Appelez-nous	-
15	8206170		Spacer, Side		Appelez-nous	-
16	8206215		Screw		Appelez-nous	-
17	8206178		Spacer, Bottom				$ 7.05
18	8206179		Screw				$ 5.58
19	8169478		Screw		Appelez-nous	-
20	8206180		Screw				$ 11.55
21	W10565483		Hinge Screw   (Replaces: W10143963)				$ 11.95
22	W10141627		Door, Complete (stainless)		Appelez-nous	-
22	W10327332		Door, Complete (universal Silver)				$ 494.45

    View Diagram in Separate Window       Print Part List
