01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts

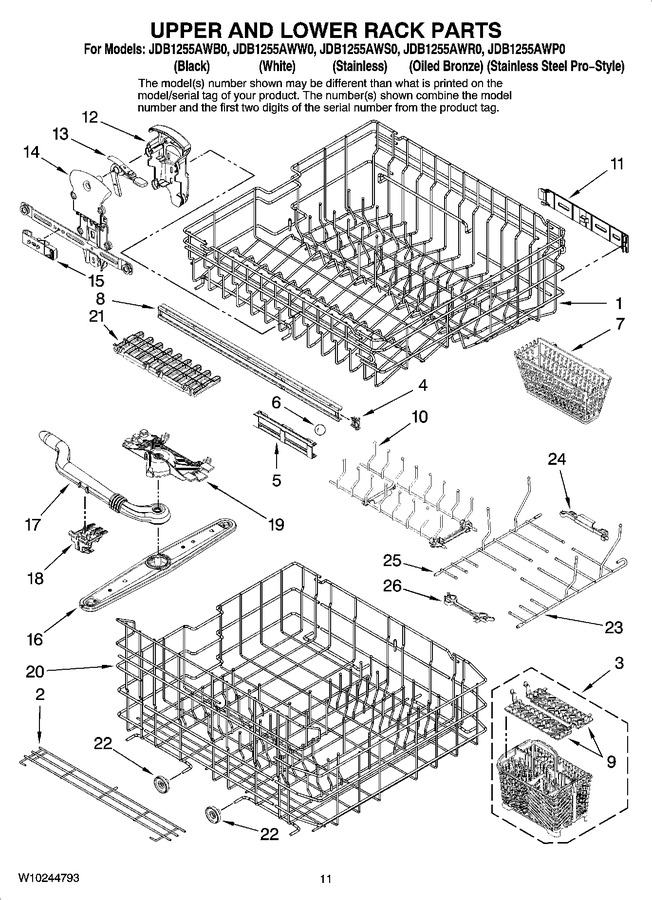

09 - Upper And Lower Rack Parts


10 - Upper Wash And Rinse Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10203875		Dishrack, Upper		Appelez-nous	-
2	W10245692		Shelf, Hi-side		Appelez-nous	-
3	WP6-918873		Basket, Silverware   (Replaces: 99003268)			Immediately	$ 54.28
4	W10169391		Stop, Rail				$ 5.85
5	99003069		Cage, Ball Bearing				$ 6.26
6	99003068		Bearing, Ball				$ 5.83
7	W10171451		Basket, Auxillary				$ 57.12
8	W10144736		Rail, Inner Slide				$ 38.06
9	99003270		Lid, Silverware Basket		Appelez-nous	-
10	99003578		Tine Assembly		Appelez-nous	-
11	99003250		Guard, Rack (high Side)		Appelez-nous	-
11	99003251		Guard, Rack (low Side)		Appelez-nous	-
12	99003277		Cover, Rack Adjuster		Appelez-nous	-
13	99003276		Lever, Rack Adjuster		Appelez-nous	-
14	W10153536		Rack, Adjuster (right)		Appelez-nous	-
14	W10153535		Rack, Adjuster (left)		Appelez-nous	-
15	99003278		Stabilizer, Rack Adjuster		Appelez-nous	-
16	99003070		Arm, Wash				$ 32.43
17	99003142		Wash Manifold Assembly		Appelez-nous	-
18	99003071		Clip, Manifold (back)				$ 19.68
19	99003072		Clip, Manifold (front)				$ 5.25
20	W10203856		Dishrack, Lower (includes 21 & 22)		Appelez-nous	-
21	99003252		Shelf, Cup (lower)		Appelez-nous	-
22	WP99003149		Wheel Assembly   (Replaces: 6-918869)			Immediately	$ 11.48
23	W10191632		Tine, Convertible		Appelez-nous	-
24	WP99003003		Pivot, Tine   (Replaces: 6-918856)			Immediately	$ 7.22
25	W10191635		Tine, Convertible (rear)		Appelez-nous	-
26	W10191636		Latch, Convertible Tine		Appelez-nous	-
