View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

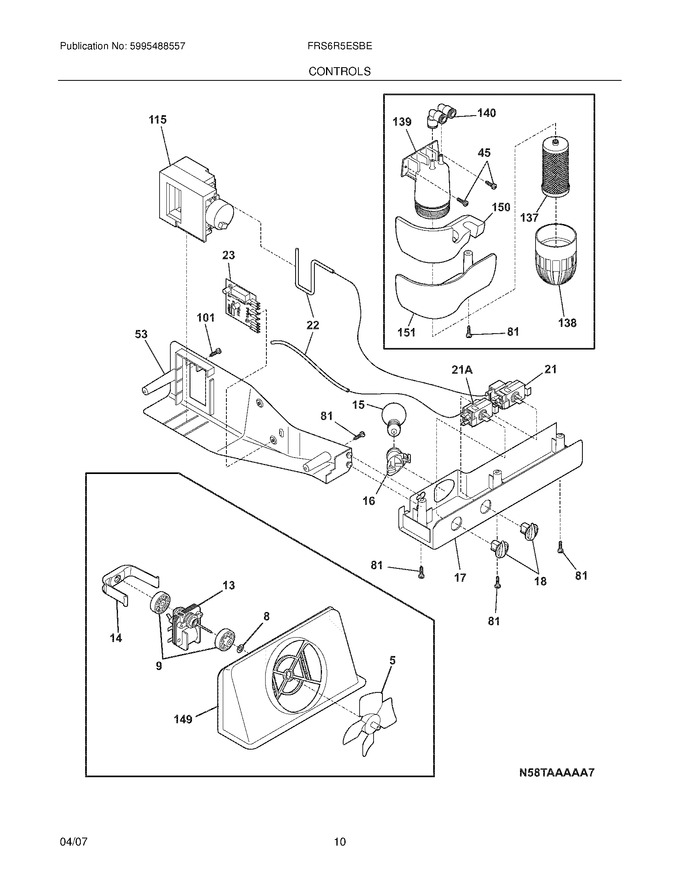

01 - Cover
03 - Freezer Door
05 - Refrigerator Door
07 - Cabinet
09 - Shelves
11 - Controls
13 - System
15 - Ice & Water Dispenser
17 - Ice Container
19 - Ice Maker
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| 9 | 241563601 | Bushing-motor Mtg,(2) |
|
Immediately | $ 17.72 | ||||
| 13 | 5303918549 | Motor-evap Fan (Replaces: 240369702) |
|
Immediately | $ 88.16 | ||||
| 14 | 242135301 | Clip,evap Fan Motor (Replaces: 241517701) |
|
$ 7.79 | |||||
| 15 | 316538904 | Light Bulb (Replaces: 241555401) |
|
Immediately | $ 20.48 | ||||
| 17 | 240383301 | Box-control,front |
|
- | |||||
| 18 | 240360801 | Knob-temp Control |
|
$ 43.95 | |||||
| 22 | 218660704 | Tube,insulator ,plastic |
|
$ 14.89 | |||||
| 45 | 241500303 | Screw,hex Washer Head ,8-18ab X 0.500 |
|
Immediately | $ 4.55 | ||||
| 53 | 240369501 | Box-control |
|
$ 78.37 | |||||
| 81 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 101 | 241637202 | Screw,no.8ab X 1 3/4`` |
|
$ 5.31 | |||||
| 115 | 241600906 | Damper Assy,w/seal (Replaces: 241600905) |
|
Immediately | $ 200.84 | ||||
| 138 | 240434401 | Cup-water Filter |
|
Immediately | $ 81.14 | ||||
| 139 | 240434301 | Housing-water Filtr |
|
Immediately | $ 69.94 | ||||
| 140 | 240545201 | Elbow-water Tube |
|
$ 73.71 | |||||
| 149 | 241563501 | Shroud-fan Orfice |
|
- | |||||
| 150 | 240394102 | Insulation-water Filter Cover |
|
$ 51.40 | |||||
| 151 | 240376002 | Cover-water Filter |
|
$ 55.91 | |||||
| 21A | 5304429602 | Control-temperature,frzr Section |
|
- | |||||
| F137 | 218710300 | Wrench-filter |
|
$ 4.54 | |||||
| F137 | WFCB | Filter,water ,carbon Canister ,rear ,with O`rings (Replaces: 240389101) |
|
Immediately | $ 66.15 | ||||
| F138 | 218904301 | O-ring,wtr Filter Cup |
|
$ 13.46 | |||||
| F149 | 241528306 | Seal,shroud |
|
- | |||||
| F16 | 218906802 | Socket-light (Replaces: 241513901) |
|
$ 17.72 | |||||
| F21 | 241537104 | Control-temperature (Replaces: 241586501) |
|
Immediately | $ 198.68 | ||||
| F23 | 242011001 | Control-defrost,adaptive Timer ,pc Board (Replaces: 241736601) |
|
Immediately | $ 159.31 | ||||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| NI | 241735702 | Harness-wiring,control Box |
|
$ 80.27 | |||||
| NI | 5304455649 | Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,(2) |
|
$ 17.01 |
