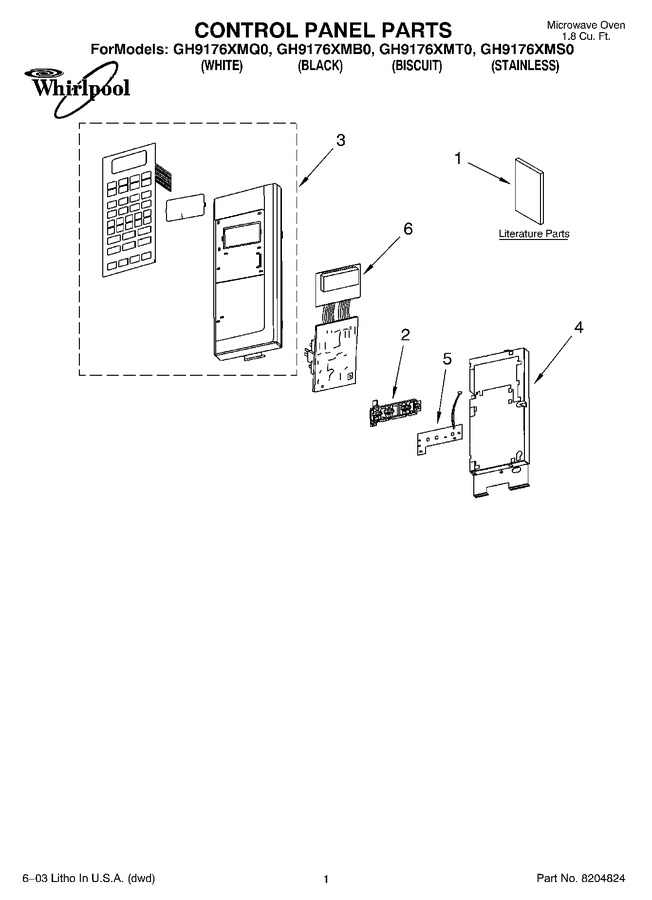

01 - Control Panel Parts


02 - Door Parts


03 - Interior And Ventilation Parts


04 - Air Flow Parts


05 - Magnetron And Turntable Parts


06 - Cabinet And Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8185468		Literature Parts (u & C Guide)		Appelez-nous	-
1	LIT8185469		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT8184059		Literature Parts (instructn, Install)		Appelez-nous	-
1	LIT8185470		Literature Parts (cook Guide Label)		Appelez-nous	-
2	8184110		Button, Control (white)		Appelez-nous	-
2	8184183		Button, Control (black/stainless)		Appelez-nous	-
2	8184182		Button, Control (biscuit)		Appelez-nous	-
3	8204818		Panel Asy, Control Includes Lens And Membrane Switch (white)		Appelez-nous	-
3	8204819		Panel Asy, Control Includes Lens And Membrane Switch (stainless)		Appelez-nous	-
3	8204821		Panel Asy, Control Includes Lens And Membrane Switch (black)		Appelez-nous	-
3	8204820		Panel Asy, Control Includes Lens And Membrane Switch (biscuit)		Appelez-nous	-
4	8184920		Bracket, Control		Appelez-nous	-
5	8204823		Keyboard Assy		Appelez-nous	-
6	8204825		Microcomputer		Appelez-nous	-
