Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5303017712 Insert-broiler Pan Appelez-nous -
2 5303016973 Pan-broiler Appelez-nous -
3 3018283 Drawer Body Appelez-nous -
4 3018698 Liner Appelez-nous -
5 3131025 Insulation Appelez-nous -
6 3051038 Nut (10-24) Handle Mtg Appelez-nous -
7 3131027 Panel-almond Appelez-nous -
7 3205529 Panel-white Appelez-nous -
8 5303051041 Spacer Handle Appelez-nous -
9 5308008085 Handle Appelez-nous -
10 5303051043 Screw - Handle Mtg (10 X 24 X 5/8) Appelez-nous -
11 3131028 Hinge - Rh Appelez-nous -
12 5303131030 Spring Appelez-nous -
13 5303051055 Track Assy-rh Special Order $ 56.60

14 5303051057 Roller Appelez-nous -
11A 5303131029 Hinge - Lh Appelez-nous -
13A 5303051056 Track Assy-lh Special Order $ 78.44


    View Diagram in Separate Window     Print Icon   Print Part List

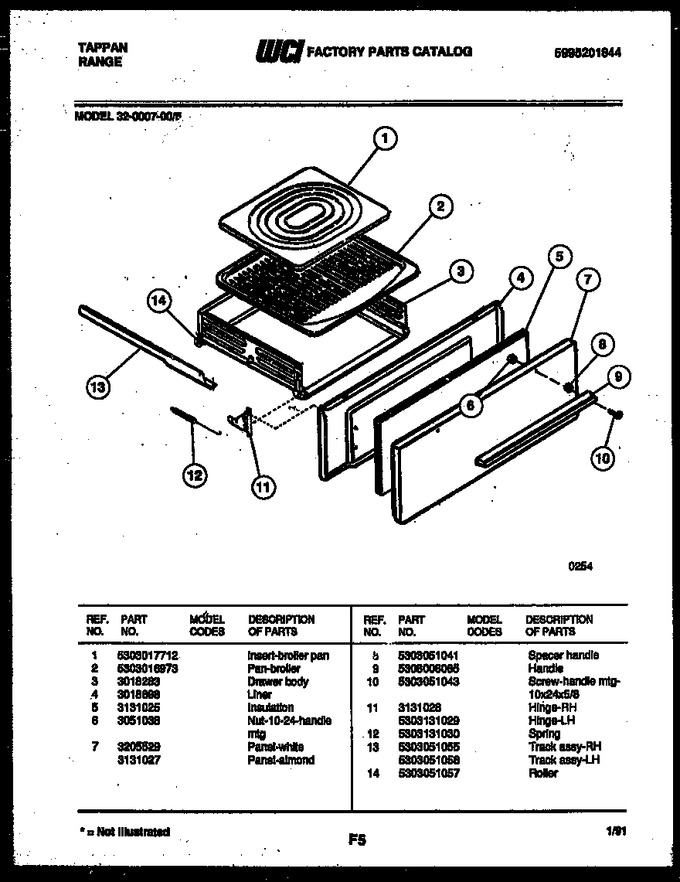

Diagram for 32-0007-00-05
