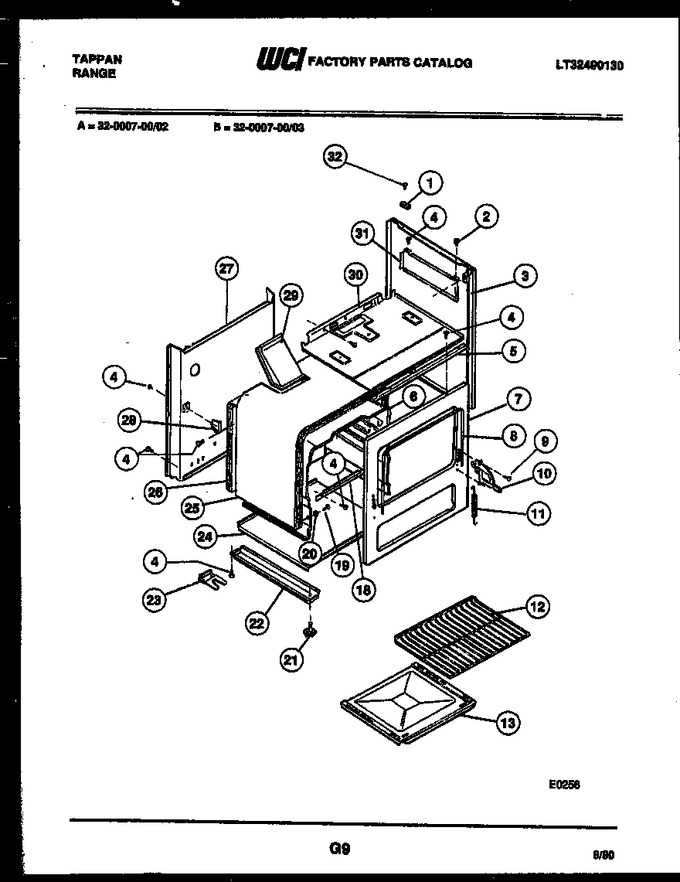

02 - Backguard
03 - Cooktop Parts
04 - Door Parts
05 - Broiler Drawer Parts
06 - Burner, Manifold And Gas Control
07 - Body Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3205587 | Grommet-maintop |
|
- | |||||
| 2 | 3051063 | Grommet |
|
- | |||||
| 3 | 5308014019 | Panel Bodyside-lh/rh (almond) |
|
- | |||||
| 4 | 3051009 | Screw-10 X 3/8 |
|
$ 5.62 | |||||
| 5 | 3051067 | Support Control Panel |
|
- | |||||
| 6 | 3018284 | Oven Liner-side Rh |
|
- | |||||
| 7 | 3203621 | Front Frame |
|
- | |||||
| 8 | 5303051069 | Seal-door |
|
- | |||||
| 9 | 5303204672 | Cam Door-lh |
|
- | |||||
| 10 | 3051070 | Screw Cam |
|
- | |||||
| 11 | 5303051079 | Spring Cam-lh/rh |
|
- | |||||
| 12 | 3016158 | Rack |
|
- | |||||
| 13 | 3018697 | Oven-bottom |
|
- | |||||
| 18 | 3131038 | Support-oven Btm |
|
- | |||||
| 19 | 3131039 | Bolt |
|
- | |||||
| 20 | 3131040 | Washer |
|
- | |||||
| 21 | 5303051080 | Levelling Leg |
|
- | |||||
| 22 | 5308068047 | Rail Base-lh/rh |
|
- | |||||
| 23 | 3131041 | Bracket-installation |
|
- | |||||
| 24 | 3131042 | Main Bottom |
|
- | |||||
| 25 | 3131043 | Insulation-top/sides |
|
- | |||||
| 26 | 3131044 | Insulation-back |
|
- | |||||
| 27 | 3131045 | Back-main |
|
- | |||||
| 28 | 3051096 | Support,oven Rear |
|
- | |||||
| 29 | 3017173 | Vent Box |
|
- | |||||
| 30 | 3017573 | Burner Box |
|
- | |||||
| 31 | 5303131053 | Shield-heat Rh |
|
- | |||||
| 32 | 3131031 | Screw-10-16 X 1/2 |
|
- | |||||
| 31A | 5303131054 | Shield-heat Lh |
|
- | |||||
| 6A | 3018285 | Oven Liner-side Lh |
|
- | |||||
| 6B | 3018700 | Oven Liner-top |
|
- | |||||
| 6C | 3018699 | Oven Liner-back |
|
- | |||||
| 9A | 5303204670 | Cam Door-rh |
|
- |
