01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm Parts


05 - Heater Parts


06 - Fill And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper And Lower Rack Parts


10 - Upper Wash And Rinse Parts


11 - Optional Parts (not Included)

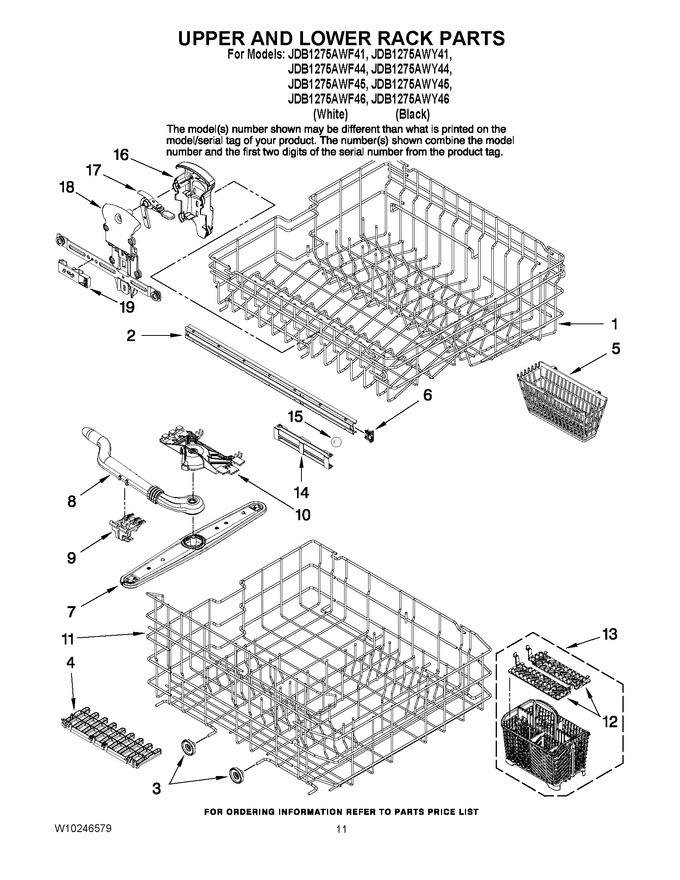

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10137106		Dishrack, Upper		Appelez-nous	-
2	W10144736		Rail, Inner Slide				$ 38.06
3	WP99003149		Wheel Assembly   (Replaces: 99003294)			Immediately	$ 11.48
4	99003252		Shelf, Cup		Appelez-nous	-
5	99003270		Cover, Silverware Basket		Appelez-nous	-
5	99003248		Basket, Auxiliary		Appelez-nous	-
6	W10169391		Stop, Rail				$ 5.85
7	99002911		Wash Arm		Appelez-nous	-
8	99003142		Wash Manifold Assembly		Appelez-nous	-
9	99003071		Clip, Upper Wash Manifold (back)				$ 19.68
10	99003072		Clip, Upper Wash Manifold (front)				$ 5.25
11	W10137099		Dishrack, Lower		Appelez-nous	-
12	WP99003149		Wheel Assembly (lower)   (Replaces: 6-918869)			Immediately	$ 11.48
13	WP6-918873		Basket, Silverware   (Replaces: 99003268)			Immediately	$ 54.28
14	99003069		Cage, Ball Bearing				$ 6.26
15	99003068		Bearing, Ball				$ 5.83
16	99003277		Cover, Back Adjuster		Appelez-nous	-
17	99003276		Lever, Rack Adjuster		Appelez-nous	-
18	W10153536		Rack, Adjuster (right)		Appelez-nous	-
18	W10153535		Rack, Adjuster (left)		Appelez-nous	-
19	99003278		Stabilizer, Rack Adjuster		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
