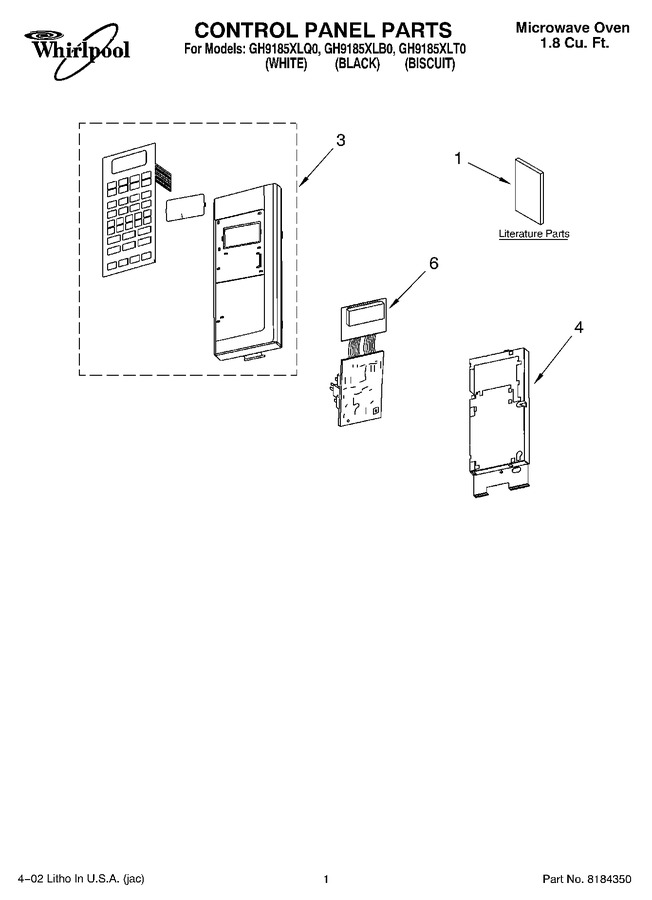

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8183957		Literature (u & C Guide)		Appelez-nous	-
1	LIT8184635		Literature (tech Sheet)		Appelez-nous	-
1	LIT8184059		Literature (instructn, Install)		Appelez-nous	-
1	LIT8183962		Literature (cook Guide Label)		Appelez-nous	-
3	8184680		Panel Asy, Control Includes Lens And Membrane Switch (white)		Appelez-nous	-
3	8184682		Panel Asy, Control Includes Lens And Membrane Switch (black)		Appelez-nous	-
3	8184681		Panel Asy, Control Includes Lens And Membrane Switch (biscuit)		Appelez-nous	-
4	8184131		Bracket, Control		Appelez-nous	-
6	8184683		Microcomputer		Appelez-nous	-
