Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 99003214 Rack Assembly (upr) 10 Appelez-nous -
1 99003062 Cap, Rack (metallic Gray) 10 Appelez-nous -
2 99003109 Rear, Varilock 10 Appelez-nous -
3 99003111 Cup, Varilock 10 Appelez-nous -
4 99002715 Spring, Varilock 10 Appelez-nous -
5 99003110 Support, Varilock 10 Appelez-nous -
6 99003108 Front, Varilock 10 Appelez-nous -
7 99003064 Guard, Rack (low Side) 10 Special Order $ 6.06

8 99003068 Bearing, Ball 10 Special Order $ 5.83

8 99003066 Rail, Inner Slide 10 Appelez-nous -
8 WP99003282 Stop, Rail (dark Gray)   (Replaces: 99003067) 10 In-Stock Immediately $ 7.04

8 99003069 Cage, Ball Bearing 10 Special Order $ 6.26

9 99003142 Wash Manifold Assy (upr) 10 Appelez-nous -
10 99003070 Arm, Wash (upr-dark Gray) 10 Special Order $ 32.43

11 99003072 Clip, Upr Wash Manifold (frt) 10 Special Order $ 5.25

12 99003071 Clip, Upr Wash Manifold (back) 10 Special Order $ 19.68

13 WP99003106 Latch, Fold Away Tine   (Replaces: 99003106) 10 In-Stock Immediately $ 7.61

14 99003104 Tine, Fold Away (lt) 10 Appelez-nous -
15 99003103 Tine, Fold Away (rt) 10 Appelez-nous -
16 WP99003105 Pivot, Fold Away Tine   (Replaces: 99003105) 10 In-Stock Immediately $ 11.13

17 99003117 Basket, Auxillary 10 Appelez-nous -
18 99003065 Shelf, Cup (upr) 10 Special Order $ 9.71

19 99003107 Clip, Cup (lt Gray) 10 Appelez-nous -
20 99003063 Guard, Rack (high Side) 10 Special Order $ 6.23

21 99003191 Cover, Rack Adjuster 10 Special Order $ 39.36

22 99003192 Lever, Rack Adjuster 10 Appelez-nous -
23 WPW10153533 Rack Adjuster Assy (lt)   (Replaces: 99003194) 10 In-Stock Immediately $ 137.39

23 99003195 Rack Adjuster Assy (rt) 10 Appelez-nous -
23 99003010 Screw (t15) 8-18 X .500 10 Appelez-nous -
24 99003193 Stabilizer, Rack Adjuster 10 Special Order $ 6.22


    View Diagram in Separate Window     Print Icon   Print Part List

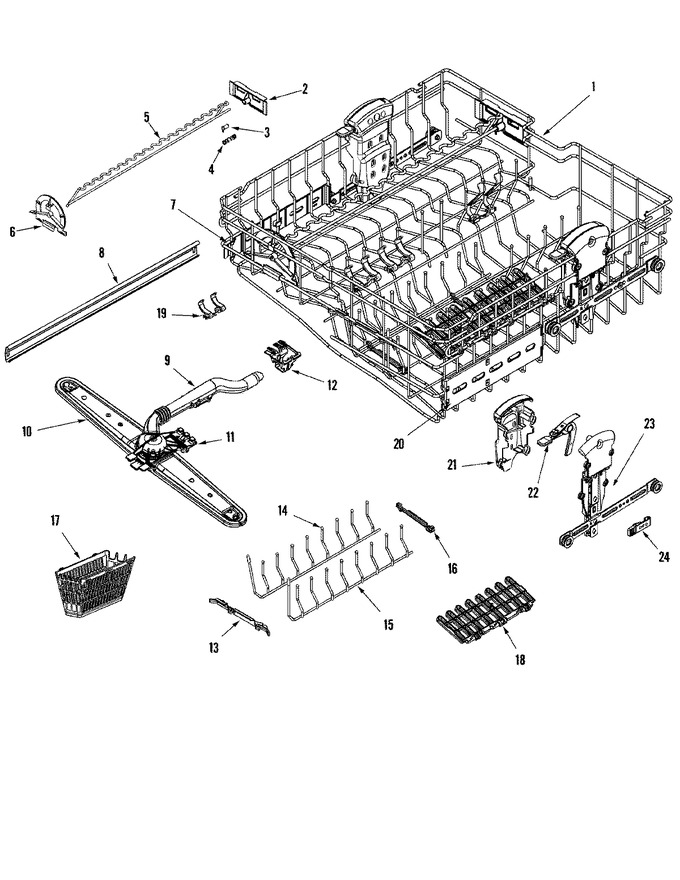

Diagram for JDB2100AWS
