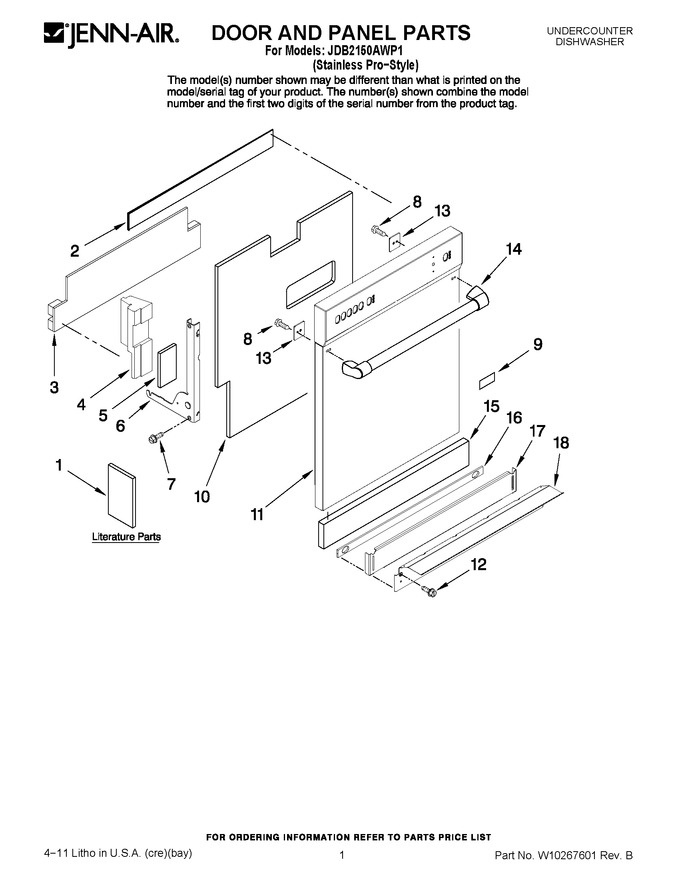

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10212195		Instructions, Installation		Appelez-nous	-
1	W10260096		Energy Guide		Appelez-nous	-
1	W10157785		Guide, Use & Care		Appelez-nous	-
2	99002693		Insulation, Door		Appelez-nous	-
3	99003048		Barrier, Foam		Appelez-nous	-
4	99003046		Block, Foam (left)		Appelez-nous	-
4	99003047		Block, Foam (right)		Appelez-nous	-
5	99003049		Wrap, Foam				$ 18.96
6	W10118638		Bracket, Hinge (left)				$ 109.77
6	WPW10118637		Bracket, Hinge (right)   (Replaces: W10118637)				$ 233.73
7	99001075		Screw				$ 5.81
8	99003154		Screw		Appelez-nous	-
9	W11636815		Nameplate   (Replaces: W10114211)				$ 38.87
10	99003044		Insulation, Door				$ 26.70
11	99003126		Panel, Front		Appelez-nous	-
12	99001194		Screw (white)				$ 6.18
12	WP6-912366		Screw (black)   (Replaces: 912366)				$ 7.29
13	W10167659		Plate, Handle (black)				$ 21.02
14	99003125		Handle, Door		Appelez-nous	-
15	WP6-920587		Insulation, Toe Panel   (Replaces: 99002414)				$ 6.35
16	99002698		Damper, Toe Panel (white)				$ 18.96
16	99002694		Damper, Toe Panel (black)				$ 20.14
17	99002766		Panel, Toe (includes Item 16) (white)		Appelez-nous	-
17	99002765		Panel, Toe (includes Item 16) (black)		Appelez-nous	-
18	99002859		Support, Front		Appelez-nous	-
