01 - Control Panel
02 - Door
03 - Pump & Motor
04 - Rinse Aid & Soap Dispenser
05 - Track & Rack Assembly
06 - Tub
07 - Wiring Information
SELECT A DIAGRAM
New Model Search:

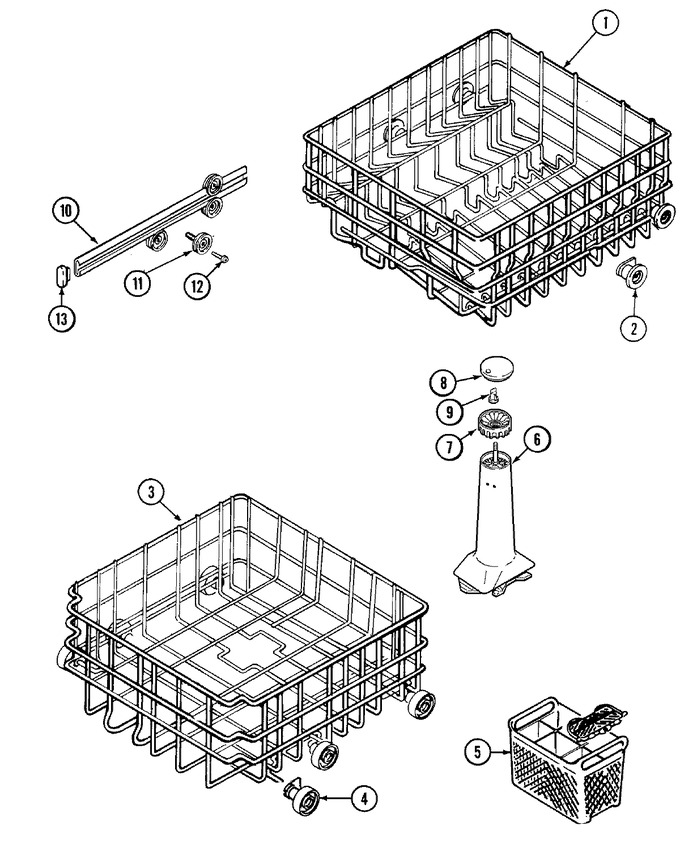

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 903092 | Upper Rack Assy | 10 |
|
- | ||||
| 2 | WP903093 | Wheel Assembly (upr) (Replaces: 903093) | 10 |
|
Immediately | $ 9.65 | |||
| 3 | 99001515 | Rack Assembly (lwr) | 10 |
|
- | ||||
| 3 | 99002395 | Rack Assembly (lwr) | 25 |
|
- | ||||
| 4 | WP99002780 | Wheel Assembly (lwr) (Replaces: 903095) | 10 |
|
Immediately | $ 9.90 | |||
| 5 | WP6-918873 | Basket, Silverware (w/cover) (Replaces: 99001751) | 10 |
|
Immediately | $ 54.28 | |||
| 6 | 99001533 | Tower, Spray (w/shaft-gray) | 10 |
|
- | ||||
| 7 | 99001442 | Diverter, Spray (gray) | 10 |
|
$ 5.84 | ||||
| 8 | 99001443 | Cap, Spray Diverter (gray) | 10 |
|
$ 5.51 | ||||
| 9 | 99001426 | Nut, Discharge Housing | 10 |
|
$ 5.84 | ||||
| 10 | Y912545 | Track, Rack | 10 |
|
$ 40.33 | ||||
| 11 | 912548 | Wheel, Tub | 10 |
|
- | ||||
| 11 | WPY912798 | Washer, Tub Wheel (Replaces: Y912798) | 10 |
|
$ 6.90 | ||||
| 12 | WP99002947 | Shaft, Tub Wheel (Replaces: 912549) | 10 |
|
Immediately | $ 10.58 | |||
| 13 | WP99002135 | Stop, Rack (gray) (Replaces: 99002135) | 10 |
|
$ 7.92 | ||||
| 14 | 99002016 | Cap, Rack (wht) | 10 |
|
- | ||||
| 14 | 99002017 | Cap, Rack (light Gray) | 10 |
|
$ 5.22 |
