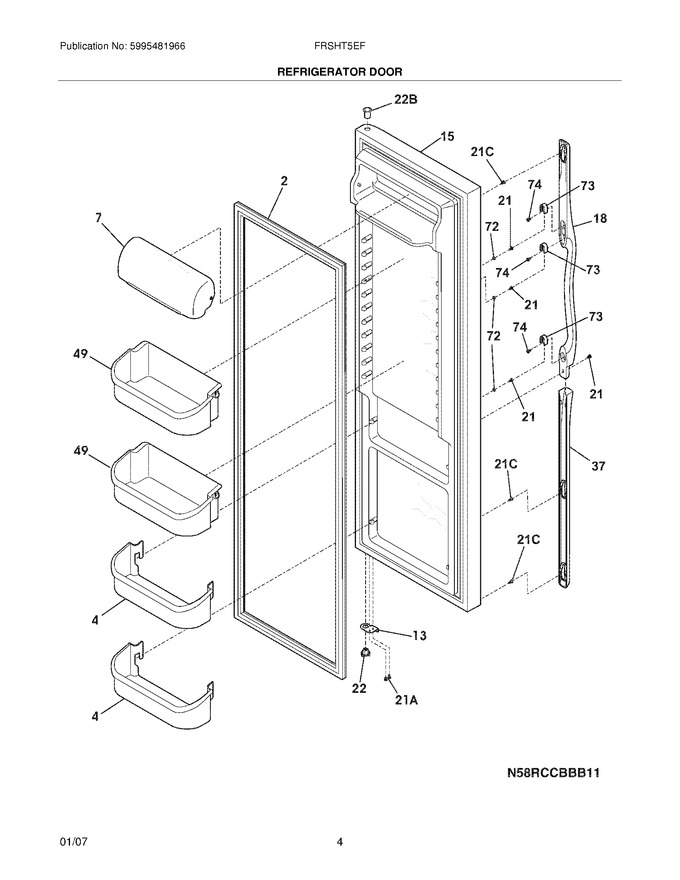

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240323002		Bin-door,pseudo ,bottom			Immediately	$ 67.21
7	240326203		Door-dairy				$ 40.37
13	240581901		Door Stop,white ,refr				$ 43.95
15	240451900		Door-refr,white ,complete Assy				$ 422.37
18	241711701		Handle-door,white ,refr		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625				$ 15.60
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
37	241711601		Trim-handle,30.13`` ,white ,lower		Appelez-nous	-
49	240356402		Bin-door,gallon			Immediately	$ 106.83
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503204		Screw,cr Pan Hd ,10-16				$ 14.96
21A	5303323137		Screw,10-32 X 1/2   (Replaces: 240598402)				$ 11.88
21C	240521304		Screw,no.8-18 X 3/4				$ 11.08
22B	240328402		Bearing-hinge,natural ,upper				$ 19.85
F2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 241674801)				$ 95.90

    View Diagram in Separate Window       Print Part List
