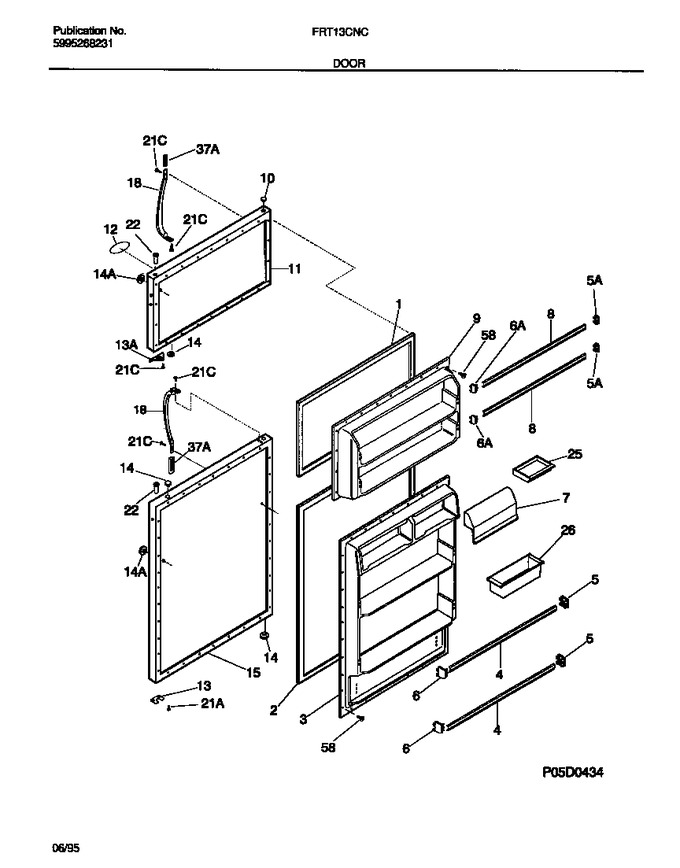

02 - Door
03 - Cabinet
04 - Shelves/controls
05 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 215608911 | Gasket-frzr Door, White, Magnetic |
|
- | |||||
| 2 | 5303271473 | Gasket-refr Door, White, Magnetic |
|
- | |||||
| 3 | 5303274585 | Panel-inner Door, Refr |
|
- | |||||
| 4 | 215516247 | Rack-door, 23.16`` X 2.04`` |
|
- | |||||
| 5 | 5303325990 | Support-door Rack, Rh (Replaces: 5303206644) |
|
Immediately | $ 17.01 | ||||
| 6 | 5303325991 | Support-door Rack, Lh (Replaces: 5303206645) |
|
$ 17.01 | |||||
| 7 | 5303310334 | Door-dairy, 9.19`` Wide |
|
- | |||||
| 8 | 215516249 | Rack-door, 22.66`` X 2.04`` |
|
- | |||||
| 9 | 5303274588 | Panel-inner Door, Frzr |
|
- | |||||
| 10 | 5308000134 | Plug-button, White, Hinge Brg Hole |
|
$ 5.62 | |||||
| 11 | 5303917479 | Panel-frzr Door, White, W/insulation |
|
- | |||||
| 12 | 215518000 | Magnet-nameplate (not Illustrated) |
|
- | |||||
| 12 | 215008607 | Label-nameplate, White, Frigidaire (not Illustrated) |
|
- | |||||
| 12 | 218364001 | Frame-nameplate, White |
|
- | |||||
| 13 | 5308000255 | Door Stop |
|
$ 42.20 | |||||
| 14 | 240494001 | Plug-button, White, Handle/dr Stop (Replaces: 5308000090) |
|
Immediately | $ 18.20 | ||||
| 15 | 5303917646 | Panel-refr Door, White, W/insulation |
|
- | |||||
| 18 | 218363401 | Handle-door, White, Hard-grip |
|
$ 85.29 | |||||
| 22 | 3206153 | Bearing-hinge |
|
- | |||||
| 25 | 5308000716 | Dish-butter |
|
$ 20.48 | |||||
| 26 | 3204522 | Container-egg |
|
$ 98.33 | |||||
| 58 | 5308002748 | Screw |
|
- | |||||
| *20680 | 5303917276 | Insulation-door, Fiberglass, (bulk) |
|
$ 330.91 | |||||
| 13A | 218249001 | Door Stop, White, Frzr |
|
$ 82.06 | |||||
| 14A | 240494001 | Plug-button, White, Refr Door Front (Replaces: 218110901) |
|
Immediately | $ 18.20 | ||||
| 21A | 218251900 | Screw, No. 8 Oval Head, 10-32 (ca) X 5/8, Cross Recessed |
|
$ 10.55 | |||||
| 21C | 218252201 | Screw, No. 8 Truss Head, 10-32 X 1/2 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 37A | 215870607 | Trim-handle, 2.47``, White, W/chrome Band |
|
- | |||||
| 5A | 5303205649 | Support-door Rack, Rh |
|
- | |||||
| 6A | 5303204840 | Support-door Rack, Lh |
|
- |
