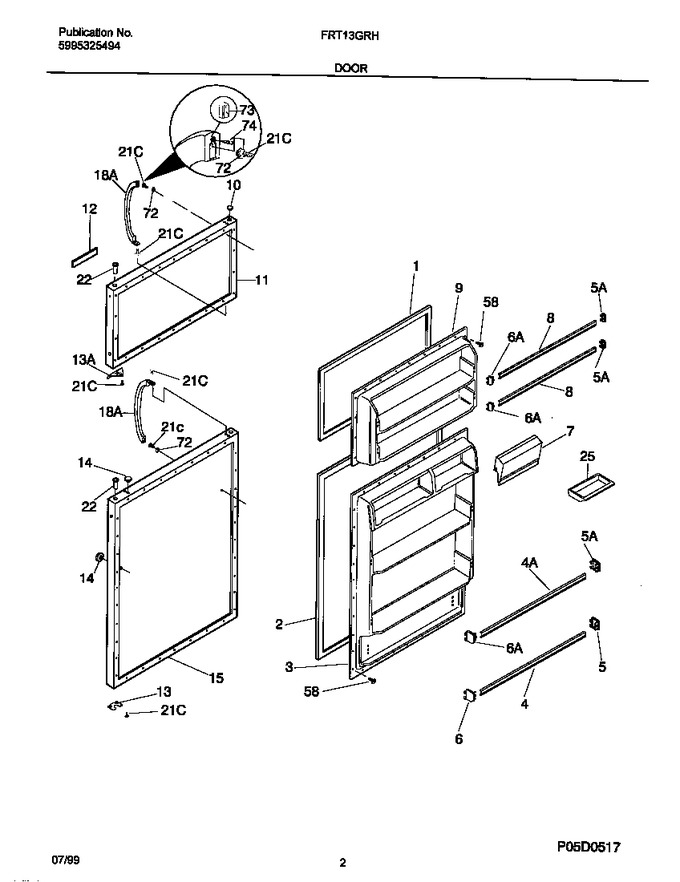

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	215608911		Gasket-frzr Door, White, Magnetic		Appelez-nous	-
2	218730601		Gasket-refr Door, White, Magnetic				$ 286.34
3	5303271483		Panel-inner Door, Refr				$ 343.77
4	5303280366		Rack-door, 23.16`` X 1.12``		Appelez-nous	-
4	215366002		Rack-door, 23.00`` X 1.62``   (Replaces: 5303280367)			Immediately	$ 65.83
5	3206165		Support-door Rack, Rh   (Replaces: 5303324321)			Immediately	$ 8.19
5	5303324320		Support-door Rack, Rh		Appelez-nous	-
6	3206166		Support-door Rack, Lh   (Replaces: 5303324303)			Immediately	$ 9.93
6	5303324302		Support-door Rack, Lh				$ 10.82
7	5303291495		Door-dairy		Appelez-nous	-
8	5303280622		Rack-door, 22.59`` X 1.12``		Appelez-nous	-
9	5303271486		Panel-inner Door, Frzr				$ 312.17
10	5308000134		Plug-button, White, Hinge Brg Hole				$ 5.62
11	5303917814		Panel-frzr Door, White, W/insulation		Appelez-nous	-
12	218917601		Label-nameplate,white				$ 2.98
13	218800300		Door Stop,plated		Appelez-nous	-
13	218249001		Door Stop, White, Frzr Section				$ 82.06
14	240494001		Plug-button, White   (Replaces: 218915701)			Immediately	$ 18.20
15	5303917816		Panel-refr Door, White, W/insulation		Appelez-nous	-
18	218428101		Handle-door, White, W/block & Screw			Immediately	$ 22.73
21	218252201		Screw,8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
22	218519300		Bearing-hinge				$ 14.60
25	5308000716		Dish-butter				$ 20.48
58	216858001		Screw, Truss Head, 8-15a X 0.500   (Replaces: 218699800)			Immediately	$ 10.85
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd ,10-16 X 0.500 ,spec/hi-lo   (Replaces: 215503200)			Immediately	$ 7.09
*67200	5303917276		Insulation-door, Fiberglass, (bulk)				$ 330.91
