SELECT A DIAGRAM

Diagram for 02 - Backguard
02 - Backguard

Diagram for 03 - Cooktop Parts
03 - Cooktop Parts

Diagram for 04 - Door Parts
04 - Door Parts

Diagram for 05 - Broiler Drawer Parts
05 - Broiler Drawer Parts

Diagram for 06 - Burner, Manifold And Gas Control
06 - Burner, Manifold And Gas Control

Diagram for 07 - Body Parts
07 - Body Parts


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5308007974 Pressure Regulator Special Order $ 309.02

2 5303131801 Screw (10 X 3/8) Burner Mouting Appelez-nous -
3 3131056 Manifold Appelez-nous -
4 5303131057 Valve-top Burner Appelez-nous -
5 08011436 Bolt-valve Mouting Appelez-nous -
6 5308013927 Thermostat Appelez-nous -
7 3051038 Nut (10-24) Valve Support Mouting Appelez-nous -
8 5303131061 Baffle-oven Burner Appelez-nous -
9 5308013855 Burner-oven Appelez-nous -
10 5303131063 Tube-oven Supply (3/8) Appelez-nous -
11 5303131064 Nut-loxit (3/8) Appelez-nous -
12 3131065 Screw-air Mixer Appelez-nous -
13 3131066 Mixer-air Appelez-nous -
14 3131067 Bolt-valve Mounting (10-24 X 2``) Appelez-nous -
15 5308013942 Valve-safety Appelez-nous -
16 3131069 Support Safety Valve Appelez-nous -
17 3131070 Screw Pilot Mounting (10-24 X 1/4) Appelez-nous -
18 3205598 Pilot Appelez-nous -
19 3131072 Nut-compression W/sleeve (3/16) Appelez-nous -
20 5303009490 Tubing-pilot (3/16) Appelez-nous -
21 3131074 Nut-loxit (3/16) Appelez-nous -
22 5303131075 Tube-pilot Appelez-nous -
23 5303016870 Support-top Burner Appelez-nous -
24 3131077 Pal Nut Support Mtg (1/4) Appelez-nous -
25 3131078 Shield-pilot Appelez-nous -
26 5303131079 Burner,top ,rear Special Order $ 129.78

27 5303131080 Burner-top Front Special Order $ 76.13

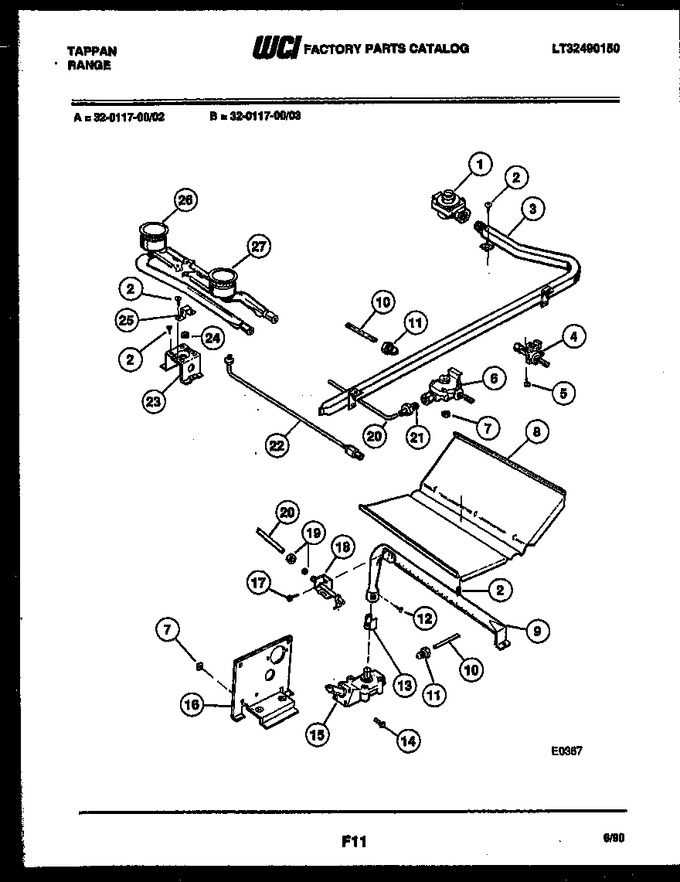

    View Diagram in Separate Window     Print Icon   Print Part List

Diagram for 32-0117-23-03
