SELECT A DIAGRAM

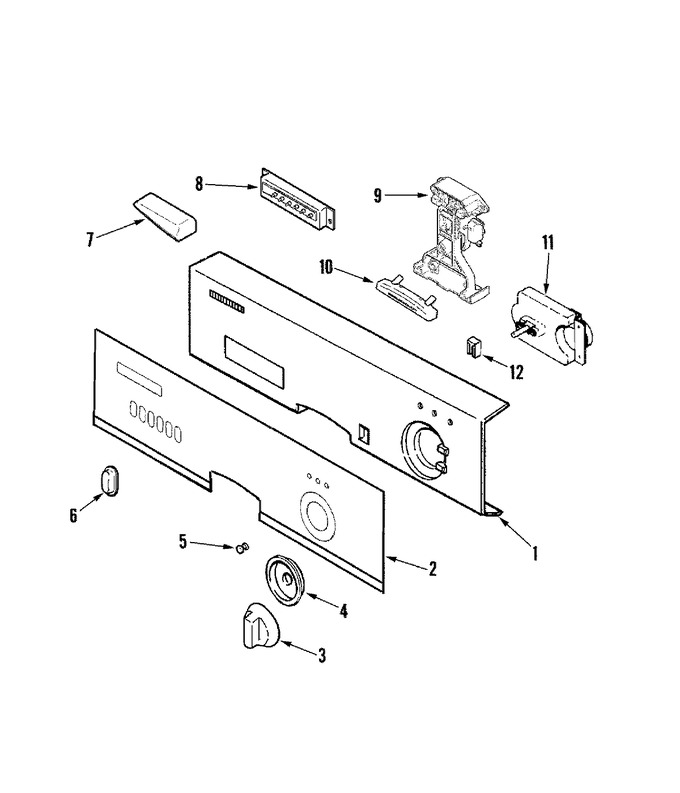

01 - Control Panel


02 - Door


03 - Inner Tub


04 - Outer Tub


05 - Pump & Motor


06 - Track & Rack Assembly


07 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002168		Panel, Control (blk)	10	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
2	99002167		Facia, Ctrl Pnl (stnls)	10	Appelez-nous	-
3	99001318		Knob, Timer (blk)	10			$ 33.47
4	99001698		Ring, Decorator (stnls)	10	Appelez-nous	-
5	99001319		Lens, Mini-convex	10	Appelez-nous	-
6	99001635		Button, Control Switch (blk)	10	Appelez-nous	-
7	99002209		Insert, Vent Liner	10	Appelez-nous	-
8	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
8	99002211		Switch, Control (6 Pos)	10	Appelez-nous	-
9	99002187		Latch Assembly	10			$ 44.27
10	WP99002839		Handle, Latch (blk)   (Replaces: 99002142)	10			$ 107.66
11	99002206		Timer	10			$ 215.47
11	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
12	903115		Lock Light	10			$ 5.70
13	99002490		Harness, Wire	27	Appelez-nous	-
13	99002205		Harness, Wire	10	Appelez-nous	-
14	99002179		Manual, Use & Care	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
