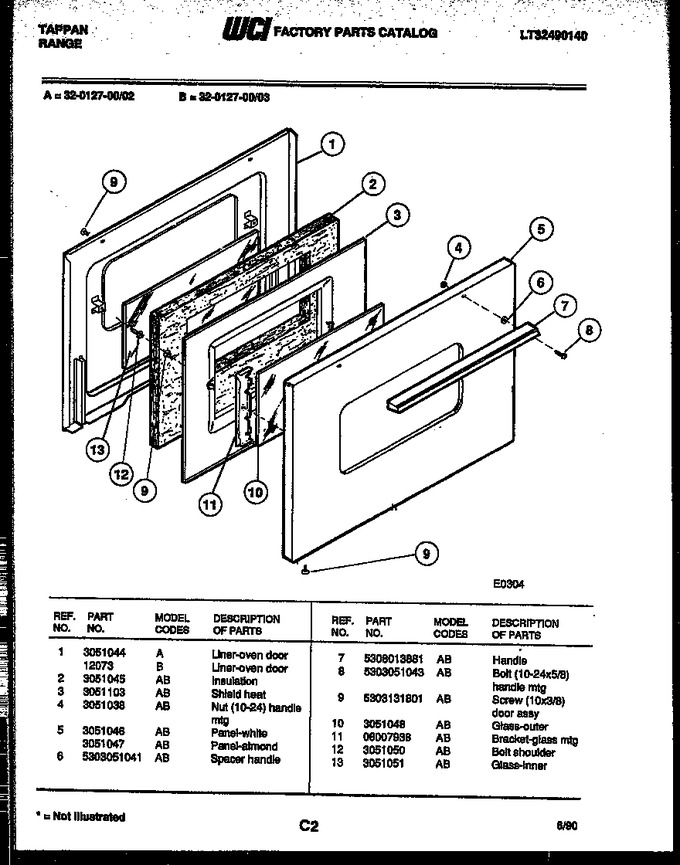

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3051044 | Liner Oven Door |
|
- | |||||
| 2 | 3051045 | Insulation |
|
- | |||||
| 3 | 3051103 | Shield-heat |
|
- | |||||
| 4 | 3051038 | Nut (10-24) Handle Mtg |
|
- | |||||
| 5 | 3051047 | Panel-almond |
|
- | |||||
| 6 | 5303051041 | Spacer Handle |
|
- | |||||
| 7 | 5308013881 | Handle |
|
- | |||||
| 8 | 5303051043 | Bolt (10-24 X 5/8) Handle Mtg |
|
- | |||||
| 9 | 5303131801 | Screw (10 X 3/8) Door Assy |
|
- | |||||
| 10 | 3051048 | Glass-outer |
|
- | |||||
| 11 | 08007938 | Bracket,glass Mtg |
|
- | |||||
| 12 | 3051050 | Bolt Shoulder |
|
$ 12.29 | |||||
| 13 | 3051051 | Glass-inner |
|
- |
