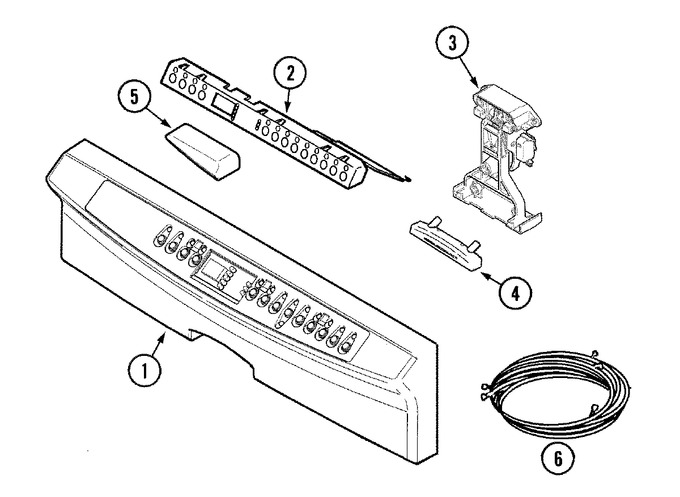

01 - Control Panel


02 - Door


03 - Inner Tub


04 - Outer Tub


05 - Pump & Motor


06 - Track & Rack Assembly


07 - Wiring Information


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002222		Panel, Control (blk)	10	Appelez-nous	-
1	WP33002917		Screw, No.8x1/2 Hex Washer Head   (Replaces: 912615)	10		Immediately	$ 6.90
2	99002201		Pcb Assembly	10	Appelez-nous	-
2	99002234		Pcb Assembly	11	Appelez-nous	-
2	99002261		Pcb Assembly (9-button)	14	Appelez-nous	-
2	99002367		Pcb Assembly (9-button)	24	Appelez-nous	-
3	99002187		Latch Assembly	10			$ 44.27
4	WP99002839		Handle, Latch (blk)   (Replaces: 99002142)	10			$ 107.66
5	99002209		Insert, Vent Liner	10	Appelez-nous	-
6	99002265		Harness, Wire	14	Appelez-nous	-
6	99002238		Harness, Wire	11	Appelez-nous	-
6	99002487		Harness, Wire	27	Appelez-nous	-
6	99002196		Harness, Wire	10	Appelez-nous	-
6	99002104		Wire, Jumper (motor)	10	Appelez-nous	-
7	99002379		Manual, Use & Care (eng/frch)	24	Appelez-nous	-
7	99002197		Manual, Use & Care	10	Appelez-nous	-
8	99002344		Tag, Energy Guide	10	Appelez-nous	-
