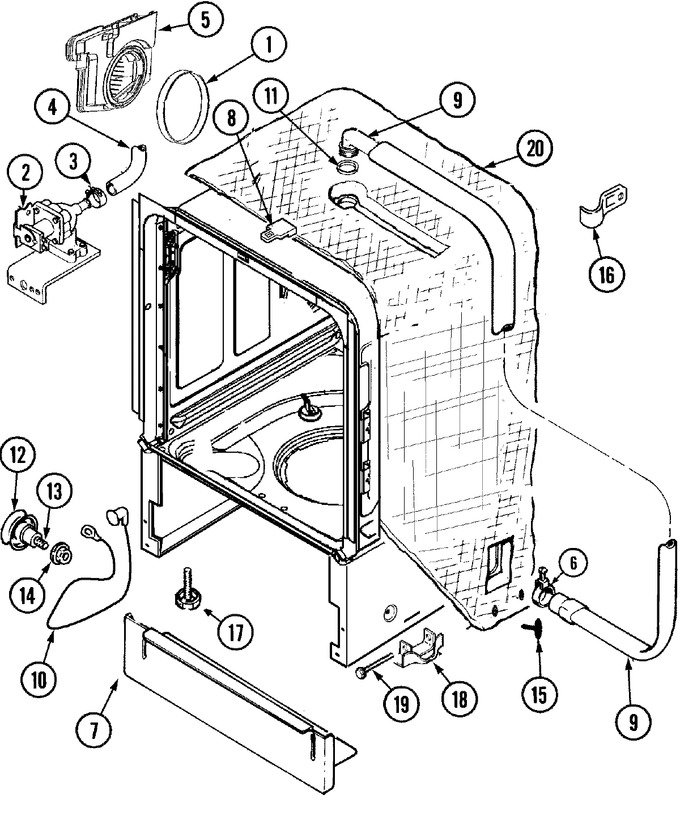

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	99002150		Seal, Air/water Inlet	10			$ 8.72
2	WP489128		Screw-no.8x7/16 Hex Washer Head   (Replaces: 99002553)	10			$ 9.79
2	WP99001359		Valve, Water   (Replaces: 99001359)	10		Immediately	$ 65.16
3	WP596669		Clamp, Spring   (Replaces: 911856)	10		Immediately	$ 7.56
4	99002160		Hose, Injector	10	Appelez-nous	-
5	99002148		Air/water Inlet Assembly	10	Appelez-nous	-
6	WP616099		Clamp, Hose (1 1/4``)   (Replaces: 904030)	10		Immediately	$ 7.03
7	99001106		Panel, Toe (wht)	10	Appelez-nous	-
7	99001194		Screw, Access Panel	10			$ 6.18
7	WP6-920587		Insulation, Toe Panel   (Replaces: Y912742)	10			$ 6.35
8	99002141		Striker, Latch	10	Appelez-nous	-
9	912647		Hose, Top Shower	10			$ 63.93
10	99002172		Cable, Soft Drop Door	10			$ 42.88
11	99002170		Seal, Shower Hose	10	Appelez-nous	-
12	99002183		Wheel, Tub	10			$ 9.09
13	99002189		Bolt, Soft Drop Door	10	Appelez-nous	-
14	99002192		Nut, Soft Drop Door	10	Appelez-nous	-
15	911917		Fastener, Insulation	10	Appelez-nous	-
16	Y912790		Hook, Drain Hose	10	Appelez-nous	-
17	WPW10143258		Leg, Leveling   (Replaces: 912579)	10			$ 13.81
18	912651		Bracket, Adjusting	10	Appelez-nous	-
19	912613		Screw, Adjusting Bracket	10	Appelez-nous	-
20	WPW10223013		Insulation, Tub (back)   (Replaces: 99002191)	10			$ 83.60
20	WPW10223013		Insulation, Tub   (Replaces: 99002156)	10			$ 83.60
