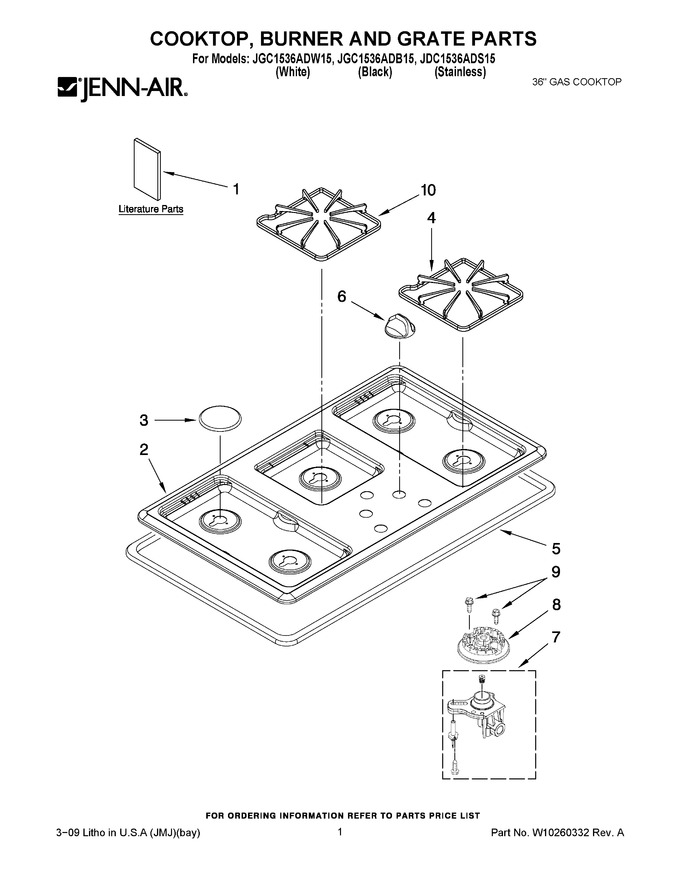

01 - Cooktop, Burner And Grate Parts
02 - Burner Box, Gas Valves, And Switches
03 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P736-60 | Installation Instructions |
|
- | |||||
| 1 | 8111P536-60 | Use & Care Guide |
|
- | |||||
| 1 | W10204418 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10205174 | Wiring Diagram (french) |
|
- | |||||
| 1 | 9762761 | Safe Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safe Cooking Tips (french) |
|
- | |||||
| 2 | 2001N297-09 | Cooktop (black) |
|
- | |||||
| 2 | 2001N295-55 | Cooktop (stainless) |
|
$ 219.11 | |||||
| 2 | 2001N297-81 | Cooktop (white) |
|
- | |||||
| 3 | 7504P204-60 | Cap, Burner (black) |
|
- | |||||
| 4 | 7518P435-60 | Grate, Burner (4) (black) |
|
$ 120.50 | |||||
| 5 | 8270P107-60 | Seal, Foam |
|
- | |||||
| 6 | W10169127 | Knob, Control (5) (black) |
|
- | |||||
| 7 | WPW10406797 | Holder, Orifice (lf, Lr & Rr) (Replaces: 8286182) |
|
$ 79.64 | |||||
| 7 | WPW10406878 | Holder, Orifice (rf) (Replaces: 8286183) |
|
Immediately | $ 92.12 | ||||
| 7 | WPW10406243 | Holder, Orifice (center) (Replaces: 8286181) |
|
Immediately | $ 33.50 | ||||
| 8 | WPW10406797 | Head, Burner (Replaces: 8286182) |
|
$ 79.64 | |||||
| 9 | WP3368921 | Screw (Replaces: 7101P685-60) |
|
Immediately | $ 6.42 | ||||
| 10 | 7518P436-60 | Grate, Center (black) |
|
- |
