SELECT A DIAGRAM

01 - Cabinet


02 - Control Panel


03 - Door


04 - Heater


05 - Motor & Drive


06 - Tumbler


07 - Wiring Information

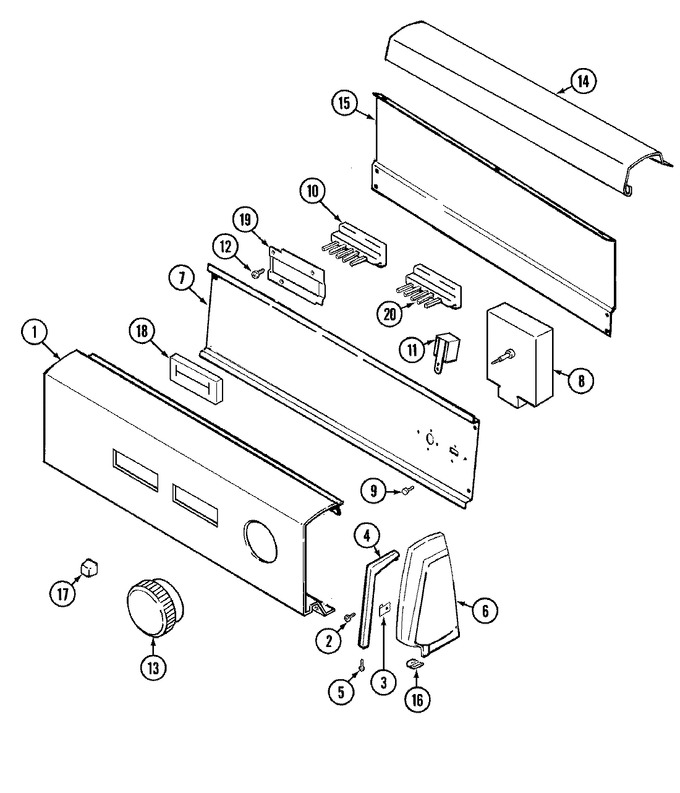

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31001199		Panel, Control (wht)	10	Appelez-nous	-
2	25-7649		Screw	10	Appelez-nous	-
3	25-7702		Speedclip, End Cap To Ctrl Pnl	10	Appelez-nous	-
4	21001246		Trim, Endcap (lt) (wht)	10	Appelez-nous	-
4	21001245		Trim, Endcap (rt) (wht)	10	Appelez-nous	-
5	25-7760		Screw	10	Appelez-nous	-
6	35-2668		Cap, End (rt)(wht)	10	Appelez-nous	-
6	35-2669		Cap, End (lt)(wht)	10	Appelez-nous	-
7	21001266		Shield, Control	10	Appelez-nous	-
7	31001193		Pad, Shield	10	Appelez-nous	-
8	53-1816		Timer	10	Appelez-nous	-
8	63-6743		Resistor Assy.	10	Appelez-nous	-
9	WP90767		Screw   (Replaces: 31001119)	10		Immediately	$ 7.04
10	31001234		Switch, Temperature	11	Appelez-nous	-
10	53-1972		Switch, Temperature	10	Appelez-nous	-
11	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
11	53-1639		Buzzer Assy.	10	Appelez-nous	-
12	25-7712		Screw	10	Appelez-nous	-
13	31001196		Knob & Skirt Assy. (wht)	10	Appelez-nous	-
14	21001243		Cover, Control Panel (wht)	10	Appelez-nous	-
15	35-2688		Shield, Control Panel (rear)	10	Appelez-nous	-
15	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
15	WP12990527		Screw, Sems   (Replaces: 25-3457)	10		Immediately	$ 7.15
16	25-7851		Speedclip, End Cap To Top	10	Appelez-nous	-
17	35-3191		Pushbutton (wht)	10	Appelez-nous	-
18	35-3515		Pad, Switch	10	Appelez-nous	-
19	WP90767		Screw   (Replaces: 25-3092)	10		Immediately	$ 7.04
19	33-6621		Bracket, Switch	10	Appelez-nous	-
20	31001241		Switch, Pushbutton	12	Appelez-nous	-
20	31001202		Switch, Pushbutton	10	Appelez-nous	-
21	31001221		Manual, Use & Care	10	Appelez-nous	-
21	31001222		Manual, Use & Care (fch)	10	Appelez-nous	-
21	16000326		Guide, Quick Ref - Jenn-air	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
