View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet

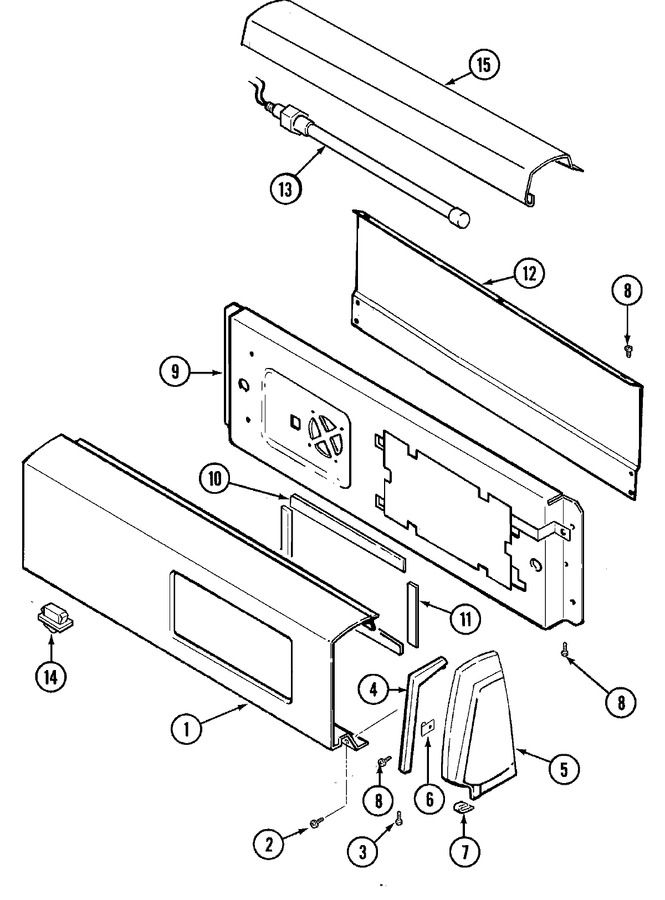

02 - Control Panel
03 - Door
04 - Gas Carrying
05 - Motor & Drive
06 - Tumbler
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 25-7760 | Screw | 10 |
|
- | ||||
| 1 | 31001212 | Panel, Control (alm) | 10 |
|
- | ||||
| 2 | 25-7649 | Screw | 10 |
|
- | ||||
| 3 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 4 | 21001248 | Trim, Endcap (lt) (alm) | 10 |
|
- | ||||
| 4 | 21001247 | Trim, Endcap (rt) (alm) | 10 |
|
- | ||||
| 5 | 21001070 | Cap, End (alm) (lt) | 10 |
|
- | ||||
| 5 | 21001069 | Cap, End (alm) (rt) | 10 |
|
- | ||||
| 6 | 25-7702 | Speedclip, End Cap To Ctrl Pnl | 10 |
|
- | ||||
| 7 | 25-7851 | Speedclip, End Cap To Top | 10 |
|
- | ||||
| 8 | WP90767 | Screw (Replaces: 25-3092) | 10 |
|
Immediately | $ 7.04 | |||
| 9 | 35-3540 | Speaker Assy | 10 |
|
- | ||||
| 9 | 31001216 | Control Shield/elect Assy-alm | 10 |
|
- | ||||
| 10 | 35-3450 | Seal, Panel Long | 10 |
|
- | ||||
| 11 | 35-3453 | Seal, Panel Short | 10 |
|
- | ||||
| 12 | 35-2688 | Shield, Control Panel (rear) | 10 |
|
- | ||||
| 12 | WP12990527 | Screw, Sems (Replaces: 25-3457) | 10 |
|
Immediately | $ 7.15 | |||
| 13 | 25-7898 | Grommet | 10 |
|
- | ||||
| 13 | 21001256 | Bulb Assy. | 10 |
|
- | ||||
| 13 | 21001260 | Clip, Mounting | 10 |
|
- | ||||
| 14 | 74008765 | Switch, Rocker (alm) (Replaces: 21001116) | 10 |
|
$ 79.50 | ||||
| 15 | 21001244 | Cover, Control Panel (alm) | 10 |
|
- | ||||
| 17 | 31001217 | Manual, Use & Care | 10 |
|
- | ||||
| 17 | 31001050 | Manual, Use & Care | 10 |
|
- | ||||
| 18 | 16000326 | Guide, Quick Ref - Jenn-air | 10 |
|
- |
