Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74004564 Lining, Oven Door 10 Appelez-nous -
2 WP74009029 Gasket, Door Window   (Replaces: 74009029) 10 In-Stock Immediately $ 145.22

3 WP74001574 Nut, Snap (round-blk)   (Replaces: 74001574) 10 In-Stock Immediately $ 9.91

4 WP7201P091-60 Gasket, Oven Door   (Replaces: 74004565) 10 Special Order $ 137.97

5 74004566 Glass, Door (inner) 10 Special Order $ 83.85

6 74004567 Frame, Glass 10 Appelez-nous -
7 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

8 74009976 Baffle, Oven Door 10 Appelez-nous -
9 74004569 Insulation, Door (8.5 X 21.5) 10 Appelez-nous -
10 74004570 Insulation, Door (3 X 8.7)-sub 10 Appelez-nous -
11 74004896 Retainer, Glass Support 10 Appelez-nous -
11 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

12 74004691 Glass, Oven Door (inner) 10 Special Order $ 120.18

13 74008920 Handle, Door 10 Appelez-nous -
13 W11190816 Spacer, Handle   (Replaces: 74008914) 10 Special Order $ 14.94

14 W11233072 Screw (8ab1/2-ni)   (Replaces: 74001530) 10 In-Stock Immediately $ 12.62

14 74010195 Panel, Door (stl-upr) 10 Special Order $ 197.67

15 74010194 Glass, Outer Door (stl-upr) 10 Appelez-nous -
16 WP3400029 Nut   (Replaces: 715634) 10 In-Stock Immediately $ 6.98


    View Diagram in Separate Window     Print Icon   Print Part List

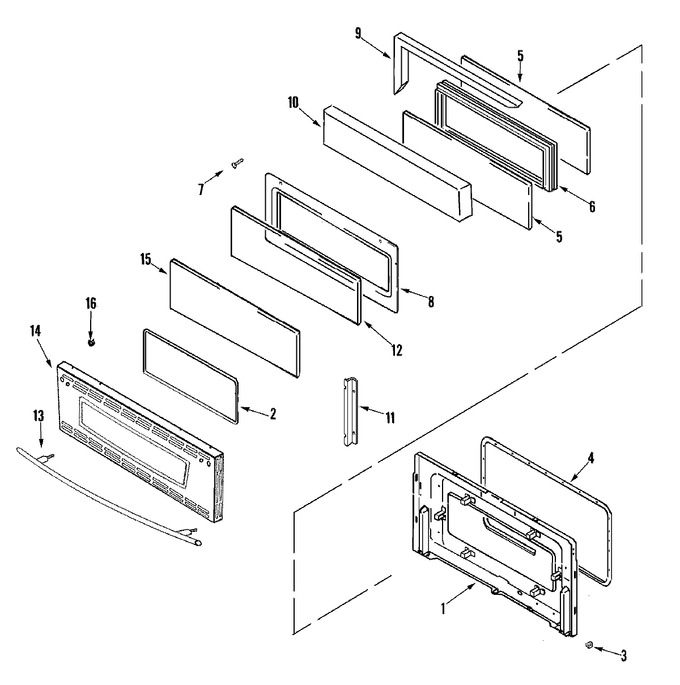

Diagram for JDR8895AAS
