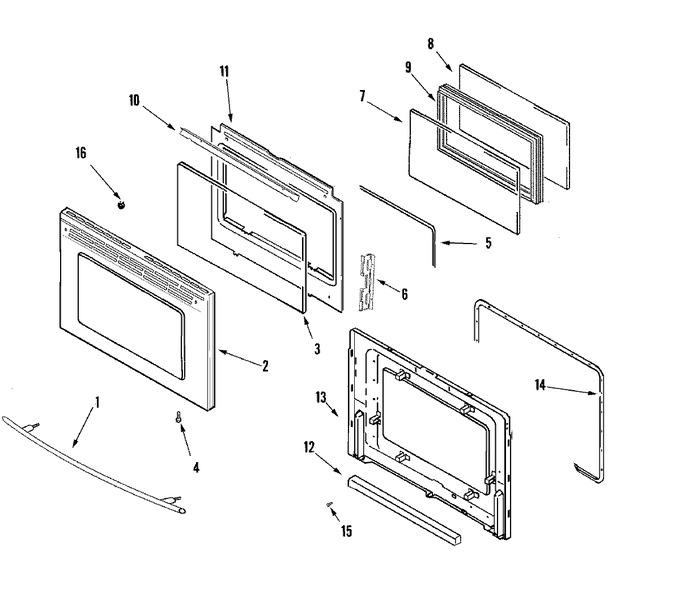

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74008920		Handle, Door	10	Appelez-nous	-
1	W11190816		Spacer, Handle   (Replaces: 74008914)	10			$ 14.94
2	74010197		Panel, Door (stl-lwr)	10			$ 199.95
2	WP74010043		Insulation, Door (foil)   (Replaces: 74010043)	10			$ 67.18
3	74010196		Glass, Outer Door (stl-lwr)	10	Appelez-nous	-
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	74008916		Gasket, Window	10			$ 127.97
6	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
6	74010041		Retainer, Door Glass	10	Appelez-nous	-
7	74003649		Glass, Door	10	Appelez-nous	-
8	74003645		Glass, Inner	10		Immediately	$ 162.53
9	W11233072		Screw, 8 X 1/2   (Replaces: 74002979)	14		Immediately	$ 12.62
9	74011458		Bracket, Inner Glass	14	Appelez-nous	-
9	74003644		Frame, Glass	10	Appelez-nous	-
10	74010040		Shield, Door (stl)	10	Appelez-nous	-
10	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	3601F373-51		Baffle, Oven Door   (Replaces: 74011457)	14			$ 244.22
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
11	74009502		Baffle, Oven Door	10	Appelez-nous	-
12	74003647		Insulation, Oven Door	10	Appelez-nous	-
13	74003642		Lining, Door	10	Appelez-nous	-
13	74011456		Lining, Door	14	Appelez-nous	-
13	WP74001574		Nut, Snap (round-blk)   (Replaces: 74001574)	10		Immediately	$ 9.91
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	14		Immediately	$ 12.62
14	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
15	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
16	WP3400029		Nut   (Replaces: 715634)	10		Immediately	$ 6.98

    View Diagram in Separate Window       Print Part List
