Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 7701P467-60 Handle, Door Appelez-nous -
2 7902P802-60 Glass, Door (black) Appelez-nous -
2 7902P742-60 Glass, Door (white) Appelez-nous -
3 W11233072 Screw   (Replaces: 7101P388-60) In-Stock Immediately $ 12.62

4 3801F832-45 Bracket, Handle (left) Special Order $ 19.12

4 3801F831-45 Bracket, Handle (right) Special Order $ 19.17

5 WP74005546 Spacer, Rubber   (Replaces: 8010P130-60) Special Order $ 9.48

6 7101P208-60 Screw Special Order $ 11.92

7 7760P148-60 Panel, Outer Door (stainless) Appelez-nous -
8 3807F708-70 Support, Glass (black) Special Order $ 63.97

8 WP3807F708-71 Support, Glass (white)   (Replaces: 3807F708-71) Special Order $ 144.83

9 WPW10162384 Gasket, Door   (Replaces: W10162384) In-Stock Immediately $ 77.61

10 3801F886-51 Bracket, Glass Special Order $ 38.25

11 W11347848 Screw   (Replaces: 7101P376-60) Special Order $ 12.20

12 74003645 Glass, Inner   (Replaces: 7902P436-60) In-Stock Immediately $ 162.53

13 WP98008545 Screw (black)   (Replaces: 7101P633-60) Special Order $ 15.94

14 WP3608F116-71 Trim, Door (white (right Hand))   (Replaces: 3608F116-71) Special Order $ 112.01

14 3608F116-70 Trim, Door (black (right Hand)) Special Order $ 49.75

15 WP3608F117-71 Trim, Door (white (left Hand))   (Replaces: 3608F117-71) Special Order $ 111.43

15 3608F117-70 Trim, Door (black (left Hand)) Special Order $ 49.73

16 3604F441-51 Shield, Door Appelez-nous -
17 3608F142-71 Trim, Door Top (white) Special Order $ 33.12

17 3608F142-70 Trim, Door Top (black) Appelez-nous -
18 3601F373-51 Baffle, Oven Door Window Special Order $ 244.22

19 7002P246-60 Insulation, Oven Door Special Order $ 58.49

20 WP74001574 Black   (Replaces: 7103P141-60) In-Stock Immediately $ 9.91

20 WP7103P114-60 White   (Replaces: 7103P039-60) Special Order $ 9.89

21 2402W312-19 Lining, Door Special Order $ 144.50

22 74011142 Hinge, Door   (Replaces: 7106P141-60) In-Stock Immediately $ 108.22


    View Diagram in Separate Window     Print Icon   Print Part List

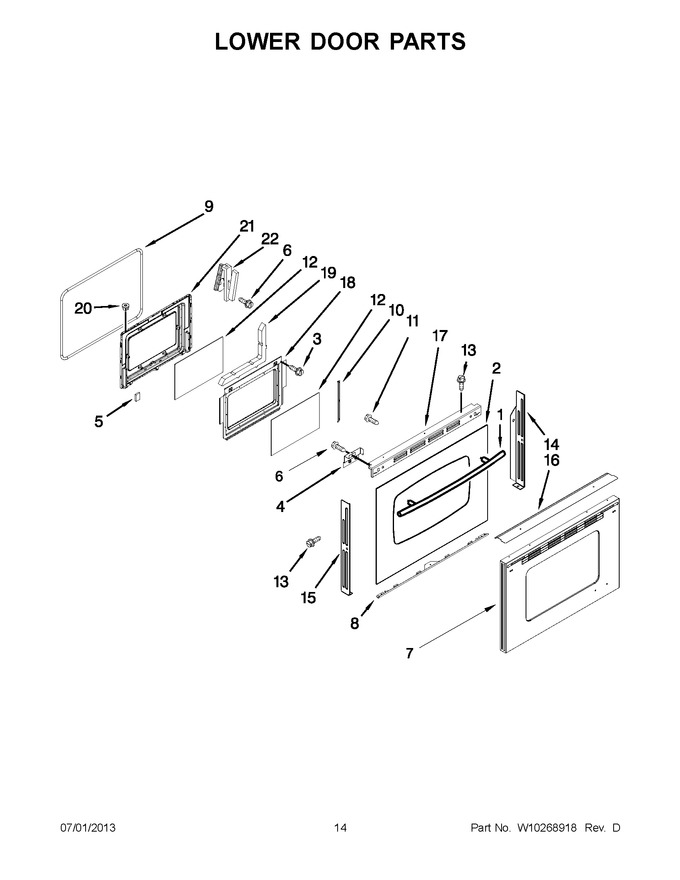

Diagram for JDR8895BAB13
