Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74009098 Module, Spark   (Replaces: 7431P053-60) Special Order $ 305.10

2 7513P531-60 Pipe, Manifold Special Order $ 73.83

3 7502P561-60 Valve, Burner (5k (2)) Special Order $ 177.73

3 7502P562-60 Valve, Burner (9.2k (2)) Special Order $ 216.90

3 7502P564-60 Valve, Burner (16k (1)) Special Order $ 117.14

4 7450P105-60 Harness, Switch Special Order $ 121.42

5 WP7527P028-60 Orifice Holder (right Front)   (Replaces: 7527P028-60) In-Stock Immediately $ 100.76

5 WP7527P023-60 Orifice Holder (rr/center)   (Replaces: 7527P023-60) Special Order $ 98.03

5 WP74007961 Orifice Holder (left Rear)   (Replaces: 7527P022-60) Special Order $ 100.54

5 WP7527P021-60 Orifice Holder (left Front)   (Replaces: 7527P021-60) Special Order $ 103.25

6 WP8523793 Ignitor,top Burner   (Replaces: 7432M126-60) In-Stock Immediately $ 36.15

7 7506P424-60 Tubing, Supply Appelez-nous -
8 7510P089-60 Regulator Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

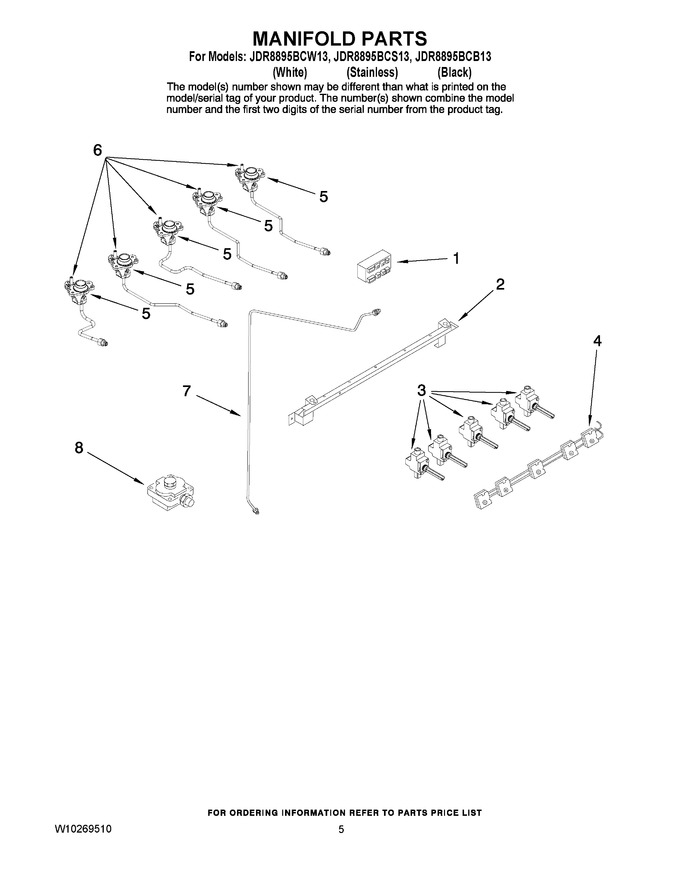

Diagram for JDR8895BCB13
