Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 74011663 Control Panel/switch Asy (stl) 10 Appelez-nous -
2 74011824 Support, Control Panel 10 Appelez-nous -
3 WP74011664 Knob, Burner (smr)   (Replaces: 74011664) 10 Special Order $ 44.58

4 WP74011666 Knob, Burner   (Replaces: 74011666) 10 In-Stock Immediately $ 27.57

5 WP8507P230-60 Control   (Replaces: 74011725) 10 Special Order $ 366.12

6 74005759 Tube, Vent (upr) 10 Appelez-nous -
7 74011723 Top Asy (stl) 10 Appelez-nous -
8 WP74004005 Screw, 6-32 X 5/16``   (Replaces: 74004005) 10 Special Order $ 6.95

9 74011632 Trim, Vent (blk) 10 Appelez-nous -
10 W10919249 Bumper, Grate Bottom   (Replaces: 74007356) 10 In-Stock Immediately $ 11.30

10 W10841140 Sealer, Rtv Clear   (Replaces: M0275597) 10 In-Stock Immediately $ 24.92

11 74011706 Grate (blk) 10 Special Order $ 174.87

12 WP74011665 Knob, Burner (dual)   (Replaces: 74011665) 10 Special Order $ 41.58

13 74011825 Insulator, Shield 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

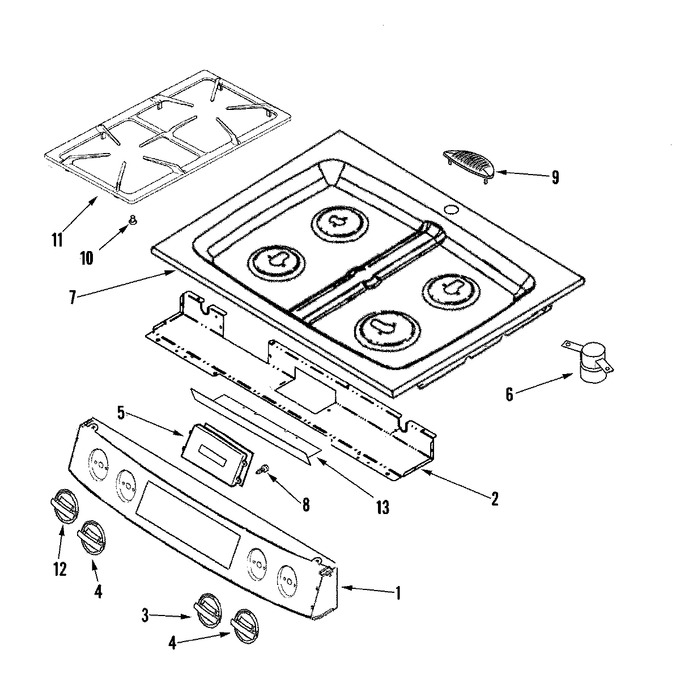

Diagram for JDS8850BDS
