SELECT A DIAGRAM
01 - Blower Assembly (plenum)
02 - Body
03 - Control Panel/top Assembly
04 - Door/access Panel

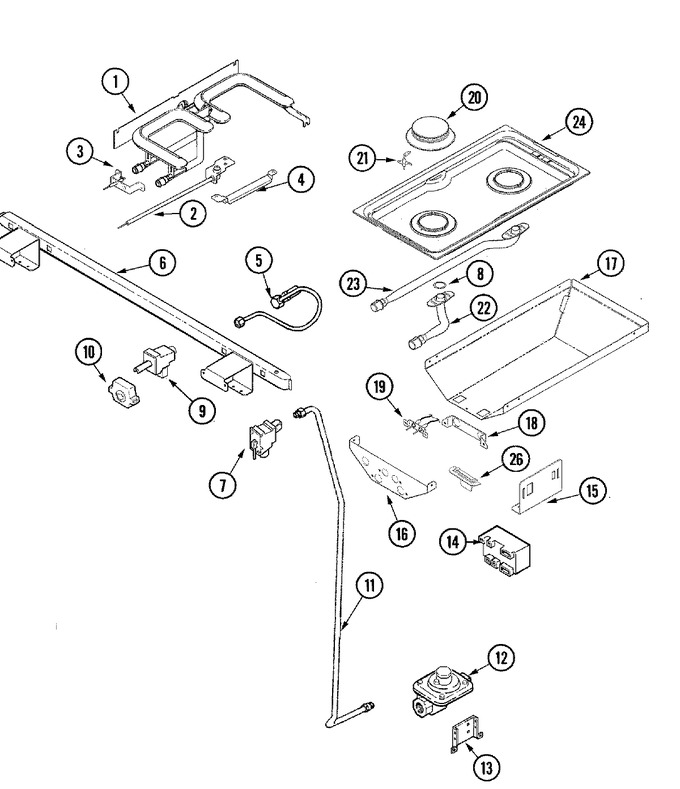

05 - Gas Controls
06 - Oven/base
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP74006070 | E-burner, Grill (Replaces: 74006070) | 10 |
|
$ 365.50 | ||||
| 2 | WP74006072 | Ignitor, E-burner (Replaces: 74006072) | 10 |
|
Immediately | $ 96.71 | |||
| 3 | WP74006073 | Ignitor, Ground Assy (Replaces: 74006073) | 10 |
|
$ 85.70 | ||||
| 4 | 74006071 | Shield, Ignitor Bracket | 10 |
|
- | ||||
| 5 | 74006085 | Tube, Burner (rf) | 10 |
|
- | ||||
| 5 | 74006086 | Tube, Burner (rr) | 10 |
|
- | ||||
| 5 | 74006087 | Tube, Burner (lf) | 10 |
|
- | ||||
| 5 | 74006088 | Tube, Burner (lr) | 10 |
|
- | ||||
| 6 | 74006023 | Pipe, Manifold | 10 |
|
- | ||||
| 7 | 74004299 | Gasket, Tubing | 10 |
|
$ 5.48 | ||||
| 7 | 74006069 | Fitting, Inlet Block | 10 |
|
- | ||||
| 8 | 74006063 | Tube, Manifold Supply | 10 |
|
- | ||||
| 9 | 71003231 | Screw, Valve | 10 |
|
- | ||||
| 9 | 74006066 | Valve, Top Burner | 10 |
|
$ 158.28 | ||||
| 9 | 74006067 | Valve, Top Burner | 10 |
|
$ 41.04 | ||||
| 9 | 74006068 | Valve, Top Burner | 10 |
|
$ 110.75 | ||||
| 9 | 74006065 | Valve, Top Burner | 10 |
|
$ 106.69 | ||||
| 10 | WPY704513 | Switch, Valve (lt) (Replaces: Y704513) | 10 |
|
$ 98.42 | ||||
| 10 | Y704928 | Switch, Valve (rh) | 10 |
|
- | ||||
| 11 | 74006064 | Tube, Supply | 10 |
|
- | ||||
| 12 | Y04100249 | Regulator, Pressure | 10 |
|
$ 173.76 | ||||
| 12 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 13 | Y04100845 | Bracket, Support | 10 |
|
- | ||||
| 14 | 8215557 | Module, Spark (4+0) (Replaces: 74004283) | 10 |
|
Immediately | $ 124.99 | |||
| 15 | 74004297 | Support, Spark Module | 10 |
|
- | ||||
| 16 | 74005887 | Cover, Cartridge | 10 |
|
- | ||||
| 16 | 74006935 | Cover, Cartridge | 16 |
|
- | ||||
| 17 | 74005888 | Housing, Cartridge | 10 |
|
- | ||||
| 18 | WP355214 | Screw (Replaces: Y700725) | 10 |
|
Immediately | $ 7.26 | |||
| 18 | 74005889 | Bracket, Venturi Alignment | 10 |
|
- | ||||
| 19 | WP74005890 | Ignitor/block, Assy (Replaces: 74006098) | 10 |
|
$ 73.14 | ||||
| 19 | WP355214 | Screw (Replaces: Y700725) | 10 |
|
Immediately | $ 7.26 | |||
| 20 | WP3403M075-10 | Burner Assy (blk) (Replaces: 74005892) | 10 |
|
Immediately | $ 144.11 | |||
| 21 | 74004053 | Igniter, Top Burner | 10 |
|
Immediately | $ 24.25 | |||
| 22 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 22 | WP7538P008-60 | Venturi (front) (Replaces: 74005894) | 10 |
|
$ 182.76 | ||||
| 23 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 23 | WP7538P009-60 | Venturi (rear) (Replaces: 74005895) | 10 |
|
$ 207.39 | ||||
| 24 | WP2001F175-09 | Top, Cartridge (blk) (Replaces: 74005897) | 10 |
|
$ 311.71 | ||||
| 24 | WP59002061 | Screw (6abx3/8-sn) (Replaces: 74004288) | 10 |
|
$ 6.98 | ||||
| 25 | WP74005893 | Seal (brass) (Replaces: 74005893) | 10 |
|
$ 6.64 | ||||
| 26 | 74006934 | Guard, Corner | 16 |
|
- | ||||
| 27 | 74006097 | Lp Conversion Kit | 10 |
|
- | ||||
| 28 | W10124350 | Not Required Part Or See Note For A Complete Sealed Burner Cartridge Order Jga8100adw | 10 |
|
- | ||||
| 29 | W10124350 | Not Required Part Or See Note For A Complete Sealed Burner Cartridde Order Jga8100adb | 10 |
|
- |
