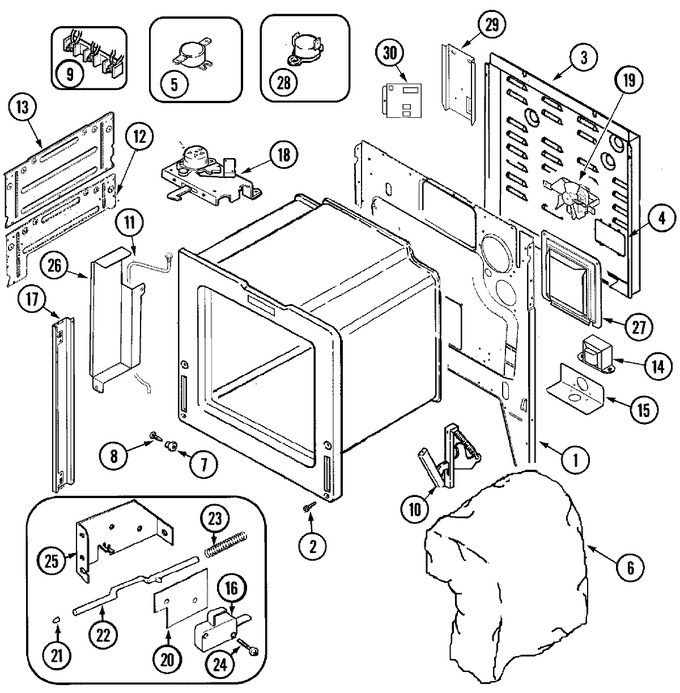

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005721 | Back, Main | 10 |
|
- | ||||
| 2 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 10 |
|
$ 4.29 | ||||
| 3 | 74006096 | Cover, Wire (rear) | 10 |
|
- | ||||
| 4 | 74005264 | Cover, Terminal Block | 10 |
|
- | ||||
| 5 | WP71001844 | Thermostat, Hi-limit (Replaces: 71001844) | 10 |
|
$ 195.41 | ||||
| 6 | 74005840 | Insulation, Back | 10 |
|
- | ||||
| 6 | 74005838 | Insulation, Wrap | 10 |
|
- | ||||
| 6 | 74005839 | Insulation, Bottom | 10 |
|
- | ||||
| 7 | W10857933 | Spacer, Side Panel (Replaces: 8004P024-60) | 10 |
|
$ 7.07 | ||||
| 8 | W11693756 | Screw (8abx19/32-zn) (Replaces: 74003004) | 10 |
|
Immediately | $ 12.65 | |||
| 9 | 74002305 | Block, Disconnect | 10 |
|
- | ||||
| 9 | WPW10245259 | Block, Terminal (Replaces: 7401P039-60) | 10 |
|
Immediately | $ 31.65 | |||
| 9 | 74002301 | Block, Disconnect | 10 |
|
- | ||||
| 9 | 74002303 | Block, Disconnect | 10 |
|
- | ||||
| 9 | 74002230 | Block, Disconnect (male) | 10 |
|
- | ||||
| 10 | WP74011140 | Hinge, Door (Replaces: 74003243) | 10 |
|
Immediately | $ 120.21 | |||
| 11 | 702748 | Nut, Drain Tube | 10 |
|
- | ||||
| 11 | 74005855 | Drain, Tube | 10 |
|
- | ||||
| 11 | 702747 | Washer, Teflon | 10 |
|
- | ||||
| 12 | 74005854 | Shield, Heat | 10 |
|
- | ||||
| 12 | 74006103 | Extension, Heat Shield | 10 |
|
- | ||||
| 13 | 74004177 | Shield, Heat | 10 |
|
- | ||||
| 14 | 74005416 | Transformer (stepdown) | 10 |
|
$ 44.05 | ||||
| 14 | W10124350 | Not Required Part Or See Note | 23 |
|
- | ||||
| 15 | 71003644 | Bracket, Power Supply | 10 |
|
- | ||||
| 16 | 74001802 | Switch | 10 |
|
- | ||||
| 17 | 74004216 | Trim, Side (blk) | 10 |
|
- | ||||
| 18 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 18 | 74004327 | Assembly, Door Latch | 10 |
|
$ 151.17 | ||||
| 18 | 74005675 | Assembly, Door Latch | 12 |
|
$ 154.57 | ||||
| 18 | 74003975 | Screw (8abx3/8-blk) | 10 |
|
$ 12.02 | ||||
| 19 | W11233072 | Screw (8ab1/2-ni) (Replaces: 74001530) | 10 |
|
Immediately | $ 12.62 | |||
| 19 | 74004947 | Fan Motor Asy. | 10 |
|
$ 214.77 | ||||
| 20 | 74001872 | Insulator, Switch | 10 |
|
- | ||||
| 21 | 74001631 | Bumper, Rod | 10 |
|
$ 5.22 | ||||
| 22 | 74003562 | Rod, Door Light Switch | 10 |
|
- | ||||
| 23 | 74001629 | Spring, Door Switch | 10 |
|
$ 15.03 | ||||
| 24 | 7101P330-60 | Screw, Switch | 10 |
|
- | ||||
| 25 | 74001632 | Bracket, Switch Actuator | 10 |
|
- | ||||
| 26 | 74005876 | Shield, Heat (lt) | 10 |
|
- | ||||
| 27 | 74004348 | Retainer, Insulation | 10 |
|
- | ||||
| 28 | 74004098 | Switch, Fan | 10 |
|
- | ||||
| 29 | 74006122 | Bracket, Relay Board | 10 |
|
- | ||||
| 30 | 71002035 | Board, Relay (downdraft) | 10 |
|
- |
