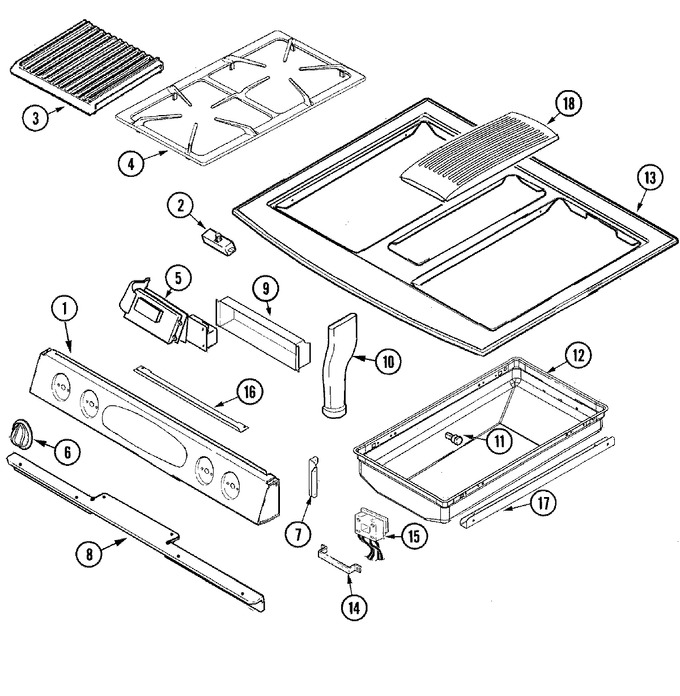

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005751 | Control Panel Assy (wht) | 10 |
|
$ 305.38 | ||||
| 2 | WP7450P012-60 | Switch, Snap (Replaces: 74006094) | 10 |
|
Immediately | $ 135.54 | |||
| 2 | 74006095 | Insulator, Switch | 10 |
|
- | ||||
| 3 | 71003267 | Grate, Grill | 10 |
|
$ 157.17 | ||||
| 4 | 74005899 | Grate, Burner (gray) | 10 |
|
- | ||||
| 5 | 74010229 | Harness, Main | 17 |
|
- | ||||
| 5 | 74006354 | Clock W/ Harness | 10 |
|
- | ||||
| 5 | 74006102 | Harness, Sensor/lock/probe | 10 |
|
- | ||||
| 5 | 74006100 | Harness, Pan Switch | 10 |
|
- | ||||
| 5 | 74011568 | Harness, Main | 22 |
|
- | ||||
| 5 | 74005873 | Harness, Control/p9 | 10 |
|
- | ||||
| 5 | 74006101 | Harness, Control | 10 |
|
- | ||||
| 5 | 74009612 | Harness, Valve Switch | 17 |
|
- | ||||
| 5 | 74010228 | Harness, Main | 10 |
|
- | ||||
| 6 | 74006058 | Knob, Valve (wht) | 10 |
|
- | ||||
| 7 | 74005729 | Bracket, Control Panel | 10 |
|
- | ||||
| 7 | WP98008545 | Screw (8abx1/2``-blk) (Replaces: 790448) | 10 |
|
$ 15.94 | ||||
| 8 | W11233072 | Screw (8bx3/8-ni) (Replaces: 7101P338-60) | 10 |
|
Immediately | $ 12.62 | |||
| 8 | 74005756 | Support, Control Panel | 10 |
|
- | ||||
| 9 | WP74004005 | Screw (Replaces: 7101P349-60) | 10 |
|
$ 6.95 | ||||
| 9 | 74005755 | Insulator, Control | 10 |
|
- | ||||
| 10 | 74005808 | Tube, Vent (upr) | 10 |
|
- | ||||
| 11 | Y052721 | Nut (Replaces: Y704553) | 10 |
|
$ 21.38 | ||||
| 11 | 71001764 | Pin, Locator | 10 |
|
$ 8.68 | ||||
| 12 | 74006089 | Pan, Grill (rt) | 10 |
|
- | ||||
| 12 | 74006090 | Pan, Grill (lt) | 10 |
|
- | ||||
| 13 | 74005819 | Top, Main (wht) | 10 |
|
- | ||||
| 14 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 14 | 7112P150-60 | Clip, Terminal Block (Replaces: 74006093) | 10 |
|
- | ||||
| 15 | 74006092 | Block, Ceramic W/wires (lt) | 10 |
|
- | ||||
| 15 | 74006091 | Block, Ceramic W/wires (rt) | 10 |
|
- | ||||
| 16 | 74005877 | Bracket, Top Support | 10 |
|
- | ||||
| 17 | W10828565 | Screw, Black (Replaces: 7101P270-60) | 10 |
|
$ 6.70 | ||||
| 17 | 74005817 | Bracket, Grill Pan | 10 |
|
- | ||||
| 18 | 74006060 | Grill, Air (wht) | 10 |
|
- | ||||
| 20 | 74005475 | Guide, Cooking (trilingual) | 10 |
|
- | ||||
| 20 | 74005522 | Manual, Use & Care | 10 |
|
- | ||||
| 20 | 16008409 | Cookbook----na | 10 |
|
- |
