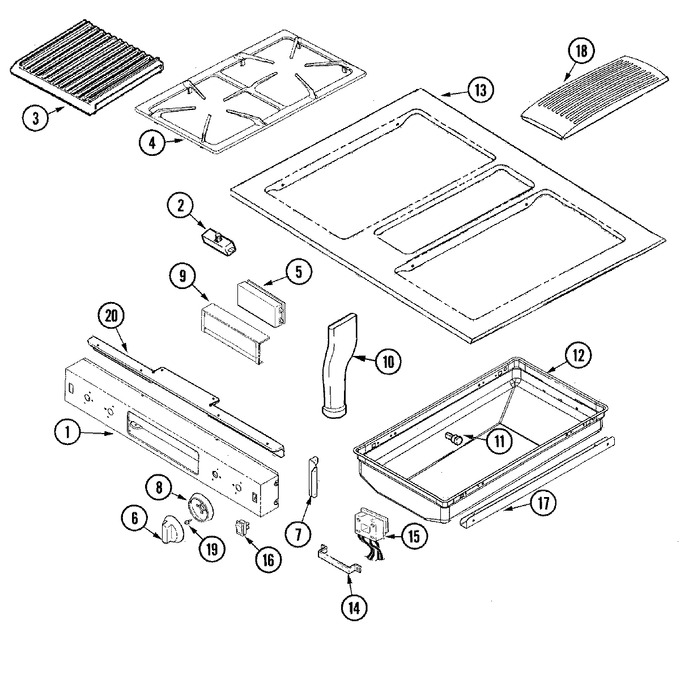

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	74010786		Panel, Manifold	10	Appelez-nous	-
2	WP7450P012-60		Switch, Snap   (Replaces: 74010438)	10		Immediately	$ 135.54
2	74006095		Insulator, Switch	10	Appelez-nous	-
3	71003267		Grate, Grill	10			$ 157.17
4	WP7518P483-60		Grate, Burner (blk)   (Replaces: 74009571)	10			$ 186.73
5	W10828565		Screw, Black   (Replaces: 7101P270-60)	10			$ 6.70
5	74006331		Harness, Sensor/lock	10	Appelez-nous	-
5	WP5760M302-60		Clock, W/overlay (blk)   (Replaces: 74008207)	10		Immediately	$ 526.02
6	WPW10175692		Knob   (Replaces: 74009633)	10		Immediately	$ 48.74
7	74005729		Bracket, Control Panel	10	Appelez-nous	-
7	WP98008545		Screw (8abx1/2``-blk)   (Replaces: 790448)	10			$ 15.94
8	74009664		Bezel, Knob	10	Appelez-nous	-
9	74006129		Bracket, Control	10	Appelez-nous	-
9	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
10	74005808		Tube, Vent (upr)	10	Appelez-nous	-
11	Y052721		Nut   (Replaces: Y704553)	10			$ 21.38
11	71001764		Pin, Locator	10			$ 8.68
12	Y704947		Washer	10	Appelez-nous	-
12	74006090		Pan, Grill (lt)	10	Appelez-nous	-
12	74006089		Pan, Grill (rt)	10	Appelez-nous	-
13	74009641		Top, Main (stl)	10	Appelez-nous	-
14	7112P150-60		Clip, Terminal Block   (Replaces: 74006093)	10	Appelez-nous	-
14	00489128		Screw   (Replaces: Y705026)	10			$ 773.97
15	74006091		Block, Ceramic W/wires (rt)	10	Appelez-nous	-
15	74006092		Block, Ceramic W/wires (lt)	10	Appelez-nous	-
16	WP3147265		Switch, Fan (blk)   (Replaces: 71002958)	10			$ 127.61
16	Y704311		Switch, Oven Light (blk)	10	Appelez-nous	-
17	W10828565		Screw, Black   (Replaces: 7101P270-60)	10			$ 6.70
17	74005817		Bracket, Grill Pan	10	Appelez-nous	-
18	74006061		Grill, Air (blk)	10			$ 114.30
19	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
20	W11233072		Screw (8bx3/8-ni)   (Replaces: 7101P338-60)	10		Immediately	$ 12.62
20	74005756		Support, Control Panel	10	Appelez-nous	-
