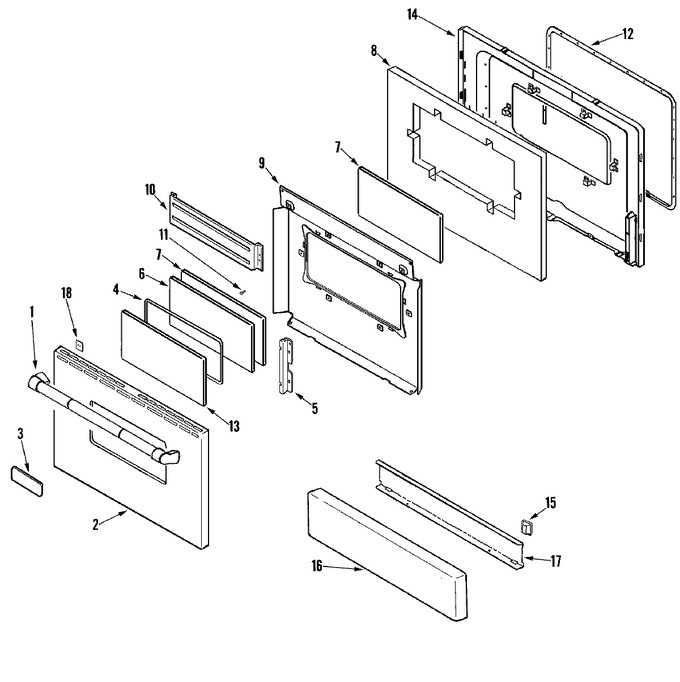

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP7701P475-60		Handle, Door (30`` Pro)   (Replaces: 74008500)	10			$ 251.94
2	74010737		Panel, Door	10	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
3	7103P166-60		Palnut   (Replaces: 715500)	10			$ 15.91
3	74006889		Nameplate (stl)	10			$ 43.24
4	7201P017-60		Gasket, Window	10			$ 52.69
5	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
5	74003048		Retainer, Glass	10	Appelez-nous	-
6	74002002		Glass, Inner	10			$ 62.17
7	74003320		Glass, Inner	10			$ 86.35
8	74001842		Insulation, Door	10	Appelez-nous	-
9	74009528		Baffle, Oven Door	10	Appelez-nous	-
10	74005458		Baffle, Door (secondary)	10	Appelez-nous	-
11	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	10		Immediately	$ 12.62
12	WPW10162384		Gasket, Door   (Replaces: 7201P046-60)	10		Immediately	$ 77.61
13	74001072		Glass, Outer Door (blk)	10	Appelez-nous	-
14	74004972		Lining, Oven Door	10	Appelez-nous	-
15	71002106		Latch, Base Door	10			$ 9.11
16	74007081		Panel, Access (stl)	10	Appelez-nous	-
17	74005807		Bracket, Access Panel	10	Appelez-nous	-
18	74010785		Plate, Back (handle Mtg)	10	Appelez-nous	-
