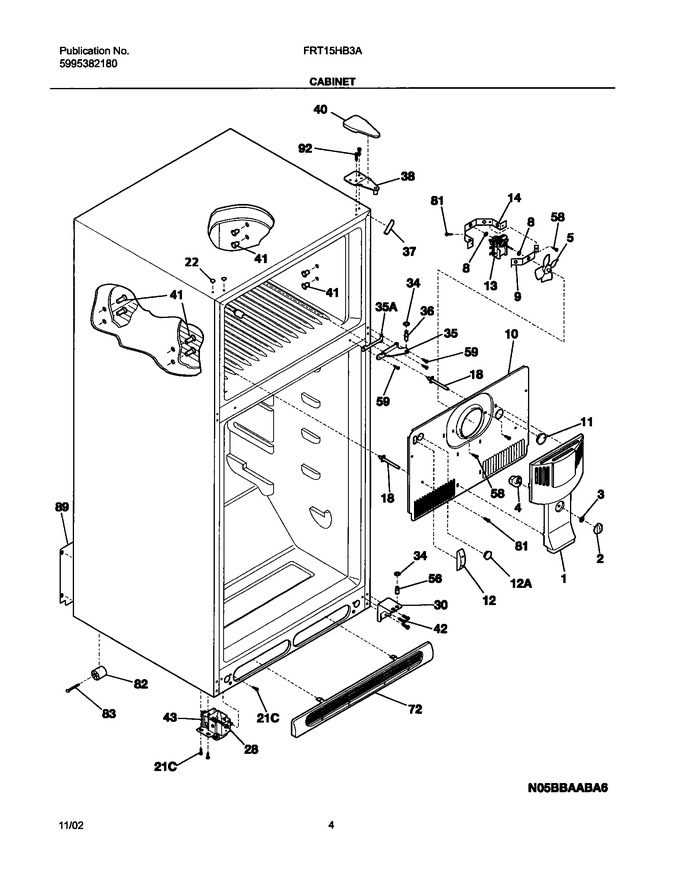

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241652301 | Cover-fan (Replaces: 240355401) |
|
$ 112.48 | |||||
| 2 | 240367001 | Knob-damper Control |
|
Immediately | $ 57.64 | ||||
| 3 | 5303001028 | Nut,push-on |
|
- | |||||
| 4 | 240367401 | Damper-fan Cover |
|
$ 41.32 | |||||
| 8 | 5300157666 | Bushing - Motor Mtg, (2) |
|
- | |||||
| 9 | 5303292396 | Bracket-motor Mtg,front |
|
$ 72.30 | |||||
| 10 | 240462004 | Cover-evap Coil |
|
- | |||||
| 11 | 5303208309 | Plug-hole, Factory Test |
|
$ 45.50 | |||||
| 12 | 240366801 | Plug-ice Maker Harness,rectangular |
|
$ 48.49 | |||||
| 14 | 240438003 | Bracket-motor Mtg,rear (Replaces: 5303292397) |
|
$ 17.44 | |||||
| 18 | 240411901 | Support-evap Cover,(2) |
|
$ 12.81 | |||||
| 22 | 215774901 | Plug-button,bisque ,upr Hinge Holes (Replaces: 215774919) |
|
Immediately | $ 18.20 | ||||
| 28 | 5304499445 | Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special (Replaces: 240335501) |
|
Immediately | $ 31.33 | ||||
| 30 | 240357104 | Bracket,bottom Hinge ,bisque |
|
- | |||||
| 34 | 240311303 | Washer,hinge ,nylon ,(2) (Replaces: 240311301) |
|
Immediately | $ 10.62 | ||||
| 35 | 240357004 | Bracket,center Hinge ,bisque |
|
- | |||||
| 36 | 241708002 | Pin-center Hinge (Replaces: 240516401) |
|
$ 21.27 | |||||
| 37 | 240337604 | Trim-cabinet Corner,bisque ,(2) |
|
- | |||||
| 38 | 240356901 | Bracket-upper Hinge |
|
- | |||||
| 40 | 240354403 | Cover-upper Hinge,bisque |
|
$ 40.95 | |||||
| 41 | 5304509705 | Grommet,shelf Mtg ,0.69`` ,rh (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 42 | 240578902 | Screw-hinge Mtg,hex Head ,1/4-20 X 0.75 (Replaces: 240423601) |
|
Immediately | $ 14.18 | ||||
| 43 | 5304499445 | Roller Assy, Front - If Fixed Rollers W/ Leveling Screws Order 241559601(rh) And 241559602(lh). (Replaces: 240335003) |
|
Immediately | $ 31.33 | ||||
| 56 | 240516502 | Pin-lower Hinge (Replaces: 240516501) |
|
$ 72.80 | |||||
| 58 | 241500303 | Screw,hex Washer Head ,8-18ab X 0.500 (Replaces: 241500301) |
|
Immediately | $ 4.55 | ||||
| 59 | 240442704 | Screw-no.10-32 X 3/4,bisque |
|
- | |||||
| 72 | 240368302 | Grille/kickplate,bisque ,lower Front |
|
$ 90.30 | |||||
| 81 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin (Replaces: 5303316859) |
|
Immediately | $ 35.34 | ||||
| 89 | 241733906 | Cover,access ,system Compt ,with Label (Replaces: 240326114) |
|
$ 51.17 | |||||
| 92 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 12A | 240374401 | Plug-wtr Inlet Tube,round ,1`` |
|
$ 12.15 | |||||
| 21C | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 (Replaces: 218252200) |
|
Immediately | $ 14.18 | ||||
| 35A | 240336802 | Spacer-hinge,center (Replaces: 240336801) |
|
Immediately | $ 18.43 | ||||
| F13 | 5303918549 | Motor-evap Fan (Replaces: 240369701) |
|
Immediately | $ 88.16 | ||||
| F5 | 5308000010 | Fan Blade,red ,evaporator Fan |
|
Immediately | $ 49.03 | ||||
| NI | 218843800 | Screw,hex Wshr Hd ,8-15a X 0.500 |
|
- | |||||
| NI | 215474201 | Washer,``slinger`` ,nylon ,evap Fan Shaft |
|
Immediately | $ 18.43 | ||||
| NI | 240524701 | Wiring Harness,freezer Section |
|
$ 73.08 | |||||
| NI | 240532101 | Seal-coil Cover |
|
- | |||||
| NI | 5304500407 | Grommet,shelf Mtg ,1.25`` ,lh (Replaces: 5308009759) |
|
Immediately | $ 6.38 | ||||
| NI | 241500302 | Screw,hex Washer Head ,8-18ab X 0.625 |
|
- | |||||
| NI | 240494001 | Plug,button ,cab Liner Holes (Replaces: 240479601) |
|
Immediately | $ 18.20 | ||||
| NI | 5304414035 | Paint,touch-up ,bisque |
|
$ 13.46 | |||||
| NI | 218931001 | Clamp-motor Wiring,nylon ,w/adhesive Tape |
|
- |
