View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Body
02 - Control Panel

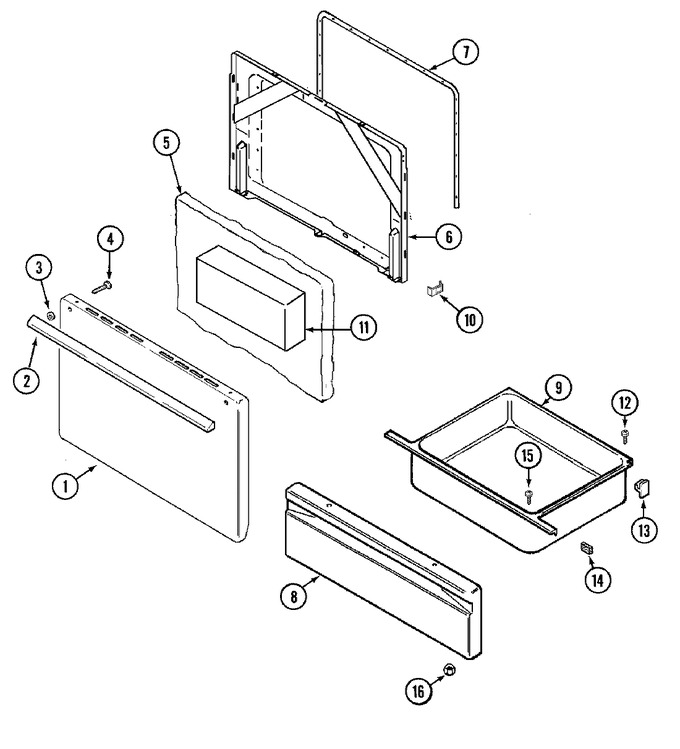

03 - Door/drawer
04 - Oven/base
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74002282 | Panel, Door (wht) | 44 |
|
- | ||||
| 1 | WP98008544 | Screw (1/2``-wht) (Replaces: 7101P373-60) | 44 |
|
$ 11.89 | ||||
| 1 | W11233072 | Screw (Replaces: 74001280) | 44 |
|
Immediately | $ 12.62 | |||
| 2 | WP2411F013-70 | Handle, Door (chr) (Replaces: 74001819) | 44 |
|
$ 186.01 | ||||
| 3 | 8010P084-60 | Spacer, Handle (blk) | 44 |
|
- | ||||
| 4 | WP3387230 | Screw (Replaces: 74002483) | 44 |
|
Immediately | $ 7.69 | |||
| 5 | 4804F050-60 | Insulation, Door 2`` | 44 |
|
- | ||||
| 6 | 74002396 | Lining, Door | 44 |
|
- | ||||
| 7 | WP7212P043-60 | Seal, Silicone (Replaces: 7212P034-60) | 44 |
|
Immediately | $ 56.83 | |||
| 8 | 2416F039-62 | Panel, Drawer (wht) | 44 |
|
- | ||||
| 9 | 3405F019-80 | Drawer, Storage | 44 |
|
- | ||||
| 10 | 7112P034-60 | Clip, Door | 44 |
|
- | ||||
| 11 | 4804F028-60 | Insulation, Latch Assy. | 44 |
|
- | ||||
| 12 | W11233072 | Screw (Replaces: 74001280) | 44 |
|
Immediately | $ 12.62 | |||
| 13 | 8004P026-60 | Support, Drawer (rear) | 44 |
|
$ 9.29 | ||||
| 14 | WP854334 | Seal, Rubber (Replaces: 7208P011-60) | 44 |
|
$ 11.95 | ||||
| 15 | W11233072 | Screw (Replaces: 74001280) | 44 |
|
Immediately | $ 12.62 | |||
| 16 | WPW10131078 | Nut, Lock (Replaces: 7103P139-60) | 44 |
|
$ 4.00 |
