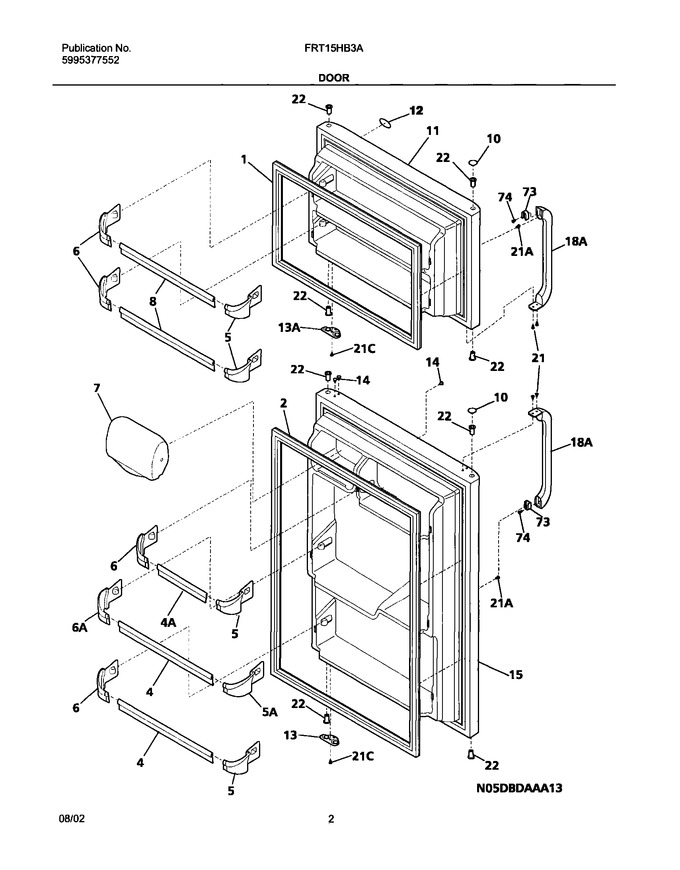

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240331401		Rack-door,18.65``   (Replaces: 240331404)			Immediately	$ 47.78
5	240311502		Support-door Rack,2 Liter ,rh			Immediately	$ 11.34
6	240311501		Support-door Rack,2 Liter ,lh			Immediately	$ 11.34
7	240337701		Door-dairy,w/o Graphics ,white			Immediately	$ 34.02
8	240331401		Rack-door,16.21``   (Replaces: 240331405)			Immediately	$ 47.78
10	240381302		Plug-button,bisque ,hinge Brg Hole ,(2)				$ 19.06
11	240415402		Door,frzr ,bisque				$ 366.85
12	241808601		Label-nameplate,bisque   (Replaces: 240415203)				$ 12.69
13	240312423		Door Stop,bisque ,ref   (Replaces: 240312407)				$ 12.13
14	240494002		Plug-button,bisque				$ 41.12
15	240415502		Door,refr ,bisque				$ 345.19
21	5304515677		Screw,truss Hd Quad ,no.10-16 X .500   (Replaces: 240383401)			Immediately	$ 19.23
22	5304507146		Bearing-hinge,natural Color ,(8)   (Replaces: 240311201)			Immediately	$ 7.59
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
13A	240312408		Door Stop,bisque ,frzr		Appelez-nous	-
18A	5304537010		Handle-door,bisque ,w/block & Screw   (Replaces: 218428119)		Appelez-nous	-
21A	240521303		Screw,no.10-16 X 1/2   (Replaces: 240521301)			Immediately	$ 30.20
21C	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
4A	240331407		Rack-door,9.04``				$ 64.16
5A	240331502		Support-door Rack,gallon ,rh			Immediately	$ 13.46
6A	240331501		Support-door Rack,gallon ,lh			Immediately	$ 13.46
F1	241872501		Gasket,frzr Door Seal ,white ,magnetic   (Replaces: 240542101)			Immediately	$ 134.19
F2	241872502		Gasket,refr Door Seal ,white ,magnetic   (Replaces: 240542102)			Immediately	$ 162.09
