SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door/drawer


04 - Oven/base


05 - Top Assembly


06 - Wiring Information

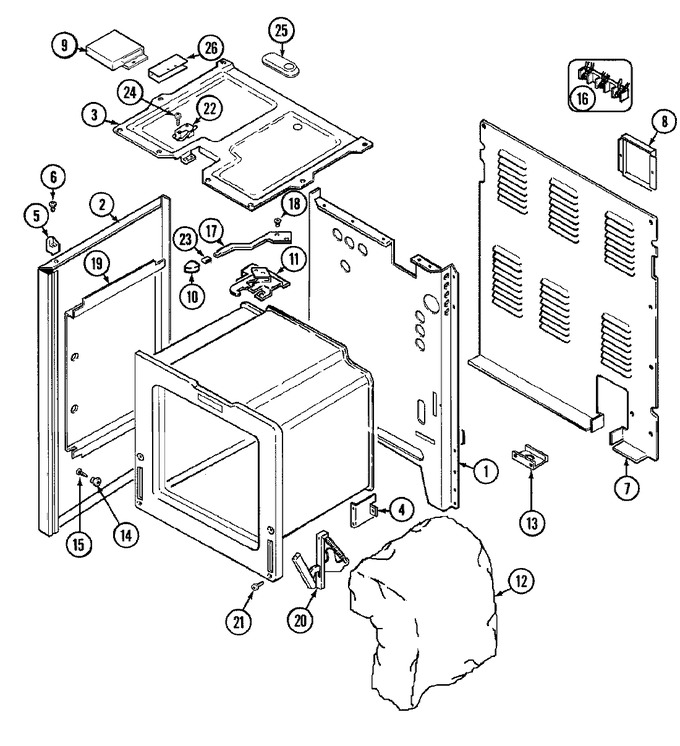

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3604F218-51		Shield, Wire	41	Appelez-nous	-
1	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	41		Immediately	$ 12.62
1	74001772		Back, Main	41	Appelez-nous	-
1	74002334		Shield, Wire	43	Appelez-nous	-
2	74001885		Panel, Side (alm)	41	Appelez-nous	-
2	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	41		Immediately	$ 12.62
3	74001753		Box, Burner----na	41	Appelez-nous	-
4	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	41		Immediately	$ 12.62
4	3807F400-51		Support,oven Rear	41	Appelez-nous	-
5	8010P088-60		Spacer, Main Top (rt)	41	Appelez-nous	-
5	8010P087-60		Spacer, Main Top (lt)	41	Appelez-nous	-
6	7101P313-60		Screw (8abx3/8-zn)	41	Appelez-nous	-
7	4005F348-51		Cover, Main Back Wire	41	Appelez-nous	-
7	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	41		Immediately	$ 12.62
8	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	41		Immediately	$ 12.62
8	4005F376-51		Cover, Terminal Block Acces	41	Appelez-nous	-
9	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	41		Immediately	$ 12.62
9	4005F398-80		Cover, Latch Assy.	41	Appelez-nous	-
10	W10124350		Not Required Part Or See Note	47	Appelez-nous	-
10	7701P088-60		Handle, Latch (blk)	41	Appelez-nous	-
10	W10124350		Not Required Part Or See Note	45	Appelez-nous	-
11	W10828565		Screw, Black   (Replaces: 7101P270-60)	48			$ 6.70
11	7101P280-60		Screw W/washer (blk)	41	Appelez-nous	-
11	74003032		Latch Assy.	48	Appelez-nous	-
11	8002P025-60		Latch Assy.	41	Appelez-nous	-
12	4804F036-60		Insulation, Wrap	41	Appelez-nous	-
12	4804F038-60		Insulation, Back	41	Appelez-nous	-
13	3605F174-51		Plate, Conduit Tubing	41	Appelez-nous	-
13	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	41		Immediately	$ 12.62
14	W10857933		Spacer, Side Panel   (Replaces: 8004P024-60)	41			$ 7.07
15	W11693756		Screw (8abx19/32-zn)   (Replaces: 74003004)	41		Immediately	$ 12.65
16	WPW10245259		Block, Terminal   (Replaces: 7401P039-60)	41		Immediately	$ 31.65
16	7401P041-60		Board, Terminal	41	Appelez-nous	-
17	74003005		Lever, Latch (blk)	47	Appelez-nous	-
17	74001725		Lever, Door Latch	41	Appelez-nous	-
18	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	41			$ 4.29
19	W11233072		Screw (8ab1/2-ni)   (Replaces: 74001530)	41		Immediately	$ 12.62
19	3804F103-51		Retainer, Insulation (side)	41	Appelez-nous	-
20	7106P056-60		Hinge	41	Appelez-nous	-
20	WP74011140		Hinge, Door   (Replaces: 74003243)	53		Immediately	$ 120.21
21	W11693756		Screw (8abx19/32-zn)   (Replaces: 74003004)	41		Immediately	$ 12.65
22	74001822		Switch, Door Lock	41	Appelez-nous	-
23	7112P003-60		Clip, Latch Handle	41	Appelez-nous	-
23	W10124350		Not Required Part Or See Note	47	Appelez-nous	-
23	W10124350		Not Required Part Or See Note	45	Appelez-nous	-
24	WP4159193		Screw, Lever   (Replaces: 7101P230-60)	41			$ 4.29
25	4005F350-45		Cover Vent	41	Appelez-nous	-
25	WP4159193		Screw, Hinge   (Replaces: 7101P017-60)	41			$ 4.29
26	74001823		Insulator, Door Lock Switch	41	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
