SELECT A DIAGRAM

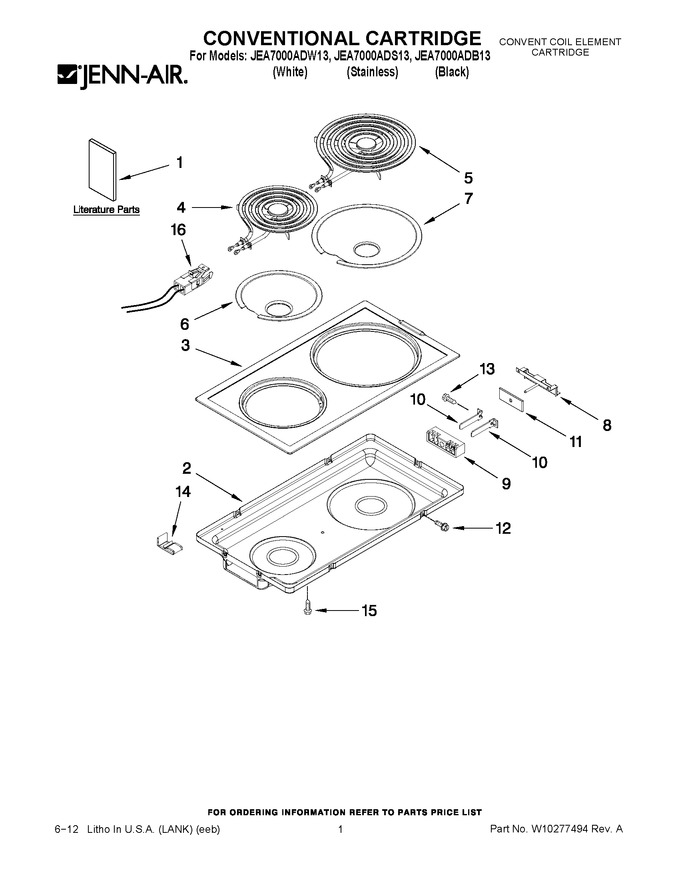

01 - Conventional Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8111P499-60 | Use & Care Guide |
|
- | |||||
| 2 | 3401F087-80 | Pan, Cartridge |
|
- | |||||
| 3 | 2002F188-81 | Cartridge, Top (white) |
|
$ 289.75 | |||||
| 3 | WP2002F188-09 | Cartridge, Top (black) (Replaces: 2002F188-09) |
|
$ 299.86 | |||||
| 3 | WP2002F208-50 | Cartridge, Top (stainless) (Replaces: 2002F208-50) |
|
$ 188.34 | |||||
| 4 | WP660532 | Element (6``) (Replaces: 7406P480-60) |
|
Immediately | $ 36.90 | ||||
| 5 | WP3191454 | Element (8``) (Replaces: 7406P478-60) |
|
$ 163.63 | |||||
| 6 | 715877 | Pan, Drip (6``) (Replaces: 7725P067-60) |
|
Immediately | $ 19.39 | ||||
| 7 | 715878 | Pan, Drip (8``) (Replaces: 7725P068-60) |
|
Immediately | $ 21.16 | ||||
| 8 | 5700A457-60 | Bracket, Retaining, Assy. |
|
- | |||||
| 9 | WPY708730 | Block, Terminal (Replaces: 7401P061-60) |
|
Immediately | $ 87.44 | ||||
| 10 | Y708572 | Spade, Contact (Replaces: 7405P131-60) |
|
Immediately | $ 11.34 | ||||
| 11 | 708834 | Insulator, Contact Spade (Replaces: 7003P078-60) |
|
$ 13.49 | |||||
| 12 | WP12990527 | Screw (Replaces: 7101P403-60) |
|
Immediately | $ 7.15 | ||||
| 13 | 7101P445-60 | Screw |
|
- | |||||
| 14 | 7111P025-60 | Clip |
|
- | |||||
| 15 | W11206744 | Screw (Replaces: 7101P394-60) |
|
$ 12.20 | |||||
| 16 | W10404687 | Clip & Block Assy |
|
$ 99.42 |
