SELECT A DIAGRAM

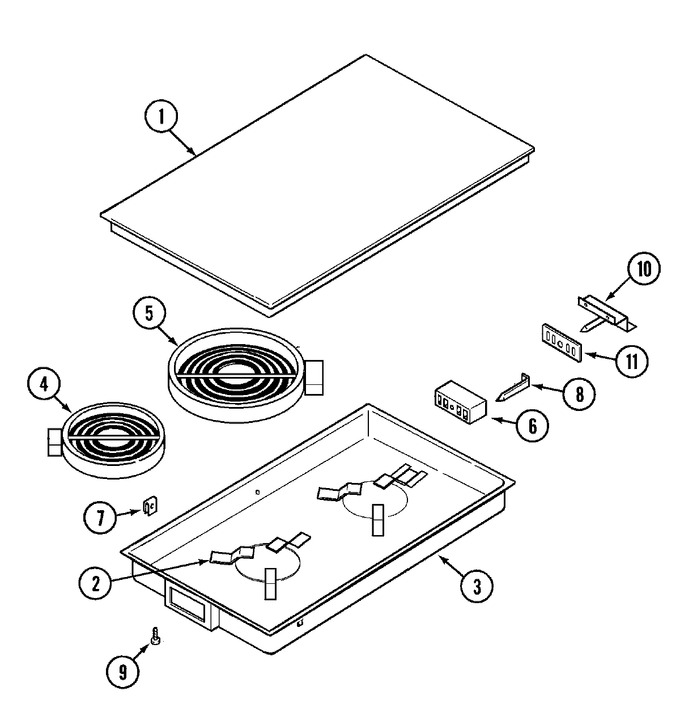

01 - Glass Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74005882 | Glass/frame Assy (wht) | 10 |
|
- | ||||
| 2 | Y04100171 | Stop, Anti Rotation | 10 |
|
- | ||||
| 2 | 71002205 | Support, Element | 10 |
|
$ 10.56 | ||||
| 3 | 71002432 | Pan, Cartridge | 10 |
|
- | ||||
| 4 | W10823702 | Element, Halogen (160mm) (Replaces: Y04100067) | 10 |
|
$ 310.65 | ||||
| 5 | W10823698 | Element, Halogen (200mm) (Replaces: 71001404) | 10 |
|
Immediately | $ 175.61 | |||
| 6 | WPY708730 | Block, Terminal (Replaces: Y708730) | 10 |
|
Immediately | $ 87.44 | |||
| 7 | Y708910 | Clip | 10 |
|
- | ||||
| 8 | Y708572 | Spade, Contact | 10 |
|
Immediately | $ 11.34 | |||
| 8 | Y04100174 | Spade & Wire Assy. | 10 |
|
- | ||||
| 8 | 71001182 | Wire, Natural | 10 |
|
- | ||||
| 8 | Y04100175 | Spade & Wire Assy. | 10 |
|
- | ||||
| 9 | WP12990527 | Screw (Replaces: Y708955) | 10 |
|
Immediately | $ 7.15 | |||
| 10 | 74005880 | Bracket, Retaiing Assy | 10 |
|
- | ||||
| 11 | 708834 | Insulator, Contact Spade | 10 |
|
$ 13.49 | ||||
| 12 | 74005584 | Manual, Use & Care | 10 |
|
- |
