SELECT A DIAGRAM

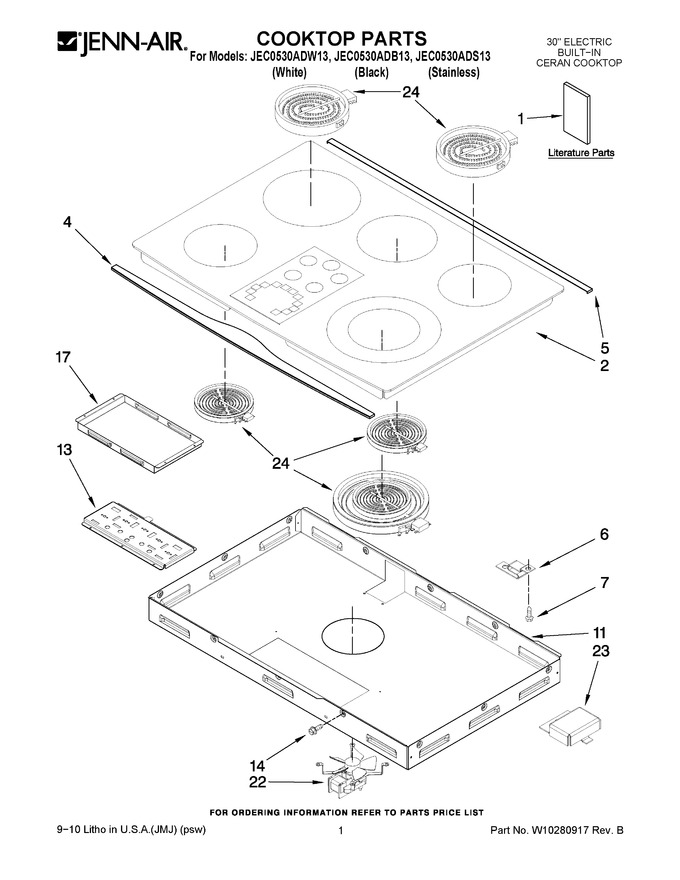

01 - Cooktop Parts


02 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762761		Safer Cooking Tips (english)		Appelez-nous	-
1	W10065852		Safer Cooking Tips (french)		Appelez-nous	-
1	8119P029-60		Installation Instructions (tech Sheet)		Appelez-nous	-
1	8112P343-60		Installation Instructions (use & Care Guide)		Appelez-nous	-
1	8101P645-60		Installation Instructions Cooktop		Appelez-nous	-
2	7920P217-60		Cooktop, Glass (black)				$ 809.37
2	7920P218-60		Cooktop, Glass (white)				$ 594.31
4	W10168876		Trim, Front (stainless Only)				$ 120.80
5	W10168883		Trim, Rear (stainless Only)				$ 56.79
6	8004P087-90		Spring Locator (8)		Appelez-nous	-
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.04
11	W101215431		Box, Burner		Appelez-nous	-
13	8507P200-60		Board, Control (white)				$ 303.56
14	4011F450-51		Screw		Appelez-nous	-
17	3601F368-51		Control Box		Appelez-nous	-
22	7427P087-60		Fan, Cooling Pull		Appelez-nous	-
23	3601F331-51		Cover, Harness		Appelez-nous	-
24	7406P400-60		Element, Surface (1200w Lf/rr)		Appelez-nous	-
24	WP74010161		Element, Surface (2000w Lr)   (Replaces: 7406P392-60)				$ 287.24
24	W10823717		Element, Surface (3000 Rf)   (Replaces: 7406P394-60)			Immediately	$ 326.24
24	7406P393-60		Element, Surface (element, Wrm)		Appelez-nous	-
