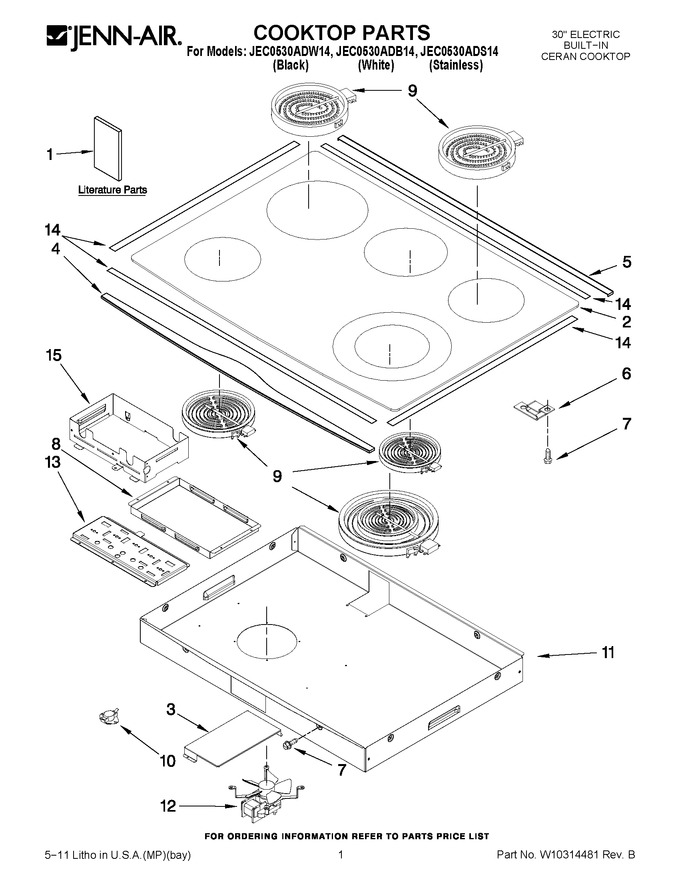

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8101P645-60 | Installation Instructions Cooktop |
|
- | |||||
| 1 | W10267677 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10259194 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10259196 | Wiring Diagram (french) |
|
- | |||||
| 2 | 7920P217-60 | Cooktop, Glass (black) |
|
$ 809.37 | |||||
| 2 | 7920P218-60 | Cooktop, Glass (white) |
|
$ 594.31 | |||||
| 3 | 3604F406-51 | Shield, Heat |
|
- | |||||
| 4 | W10168876 | Trim, Front (stainless Only) |
|
$ 120.80 | |||||
| 5 | W10168883 | Trim, Rear (stainless Only) |
|
$ 56.79 | |||||
| 6 | 8004P093-60 | Support, Element |
|
$ 10.61 | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 8 | 3601F384-51 | Baffle, Bottom |
|
$ 46.34 | |||||
| 9 | W10259200 | Element, Surface (element, Warming) |
|
$ 213.49 | |||||
| 9 | W10823711 | Element, Surface (1200w Lf) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 9 | W10259199 | Element, Surface (3000w Dual Rf) |
|
$ 191.96 | |||||
| 9 | WP74011005 | Element, Surface (2000w Lr) (Replaces: 7406P420-60) |
|
Immediately | $ 276.00 | ||||
| 10 | 7403P227-60 | Thermostat (165f-215f) |
|
$ 69.56 | |||||
| 11 | W10215431 | Box, Burner |
|
- | |||||
| 12 | 7427P087-60 | Fan, Cooling |
|
- | |||||
| 13 | 8507P200-60 | Board, Control (white) |
|
$ 303.56 | |||||
| 14 | 12002793 | Tape, Foam (Replaces: 8270P188-60) |
|
$ 70.97 | |||||
| 15 | 3601F368-51 | Baffle, Heat Shield |
|
- |
