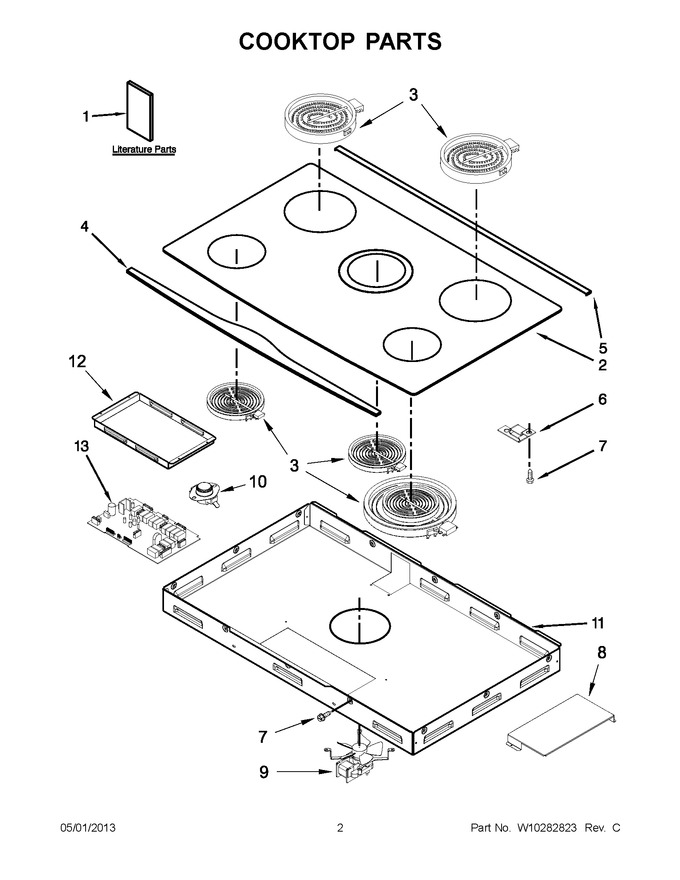

01 - Cooktop Parts
02 - Optional Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 1 | 8112P343-60 | Use & Care Guide |
|
- | |||||
| 1 | 8119P031-60 | Tech Sheet |
|
- | |||||
| 1 | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1 | 8101P645-60 | Installation Instructions |
|
- | |||||
| 2 | 7920P219-60 | Cooktop, Glass (black) |
|
- | |||||
| 2 | 7920P220-60 | Cooktop, Glass (white) |
|
$ 773.70 | |||||
| 3 | WP74010157 | Element (1800w) (left Rear) (Replaces: 7406P395-60) |
|
$ 262.81 | |||||
| 3 | W10823718 | Element (2700/2000/1000w) (center) (Replaces: 7406P397-60) |
|
Immediately | $ 364.59 | ||||
| 3 | W10823717 | Element (3000w) (right Front) (Replaces: 7406P394-60) |
|
Immediately | $ 326.24 | ||||
| 3 | WP74009899 | Element, Warming (right Rear) (Replaces: 7406P401-60) |
|
$ 153.85 | |||||
| 3 | 7406P399-60 | Element (1200w) (left Front) |
|
- | |||||
| 4 | W10168880 | Trim, Front (stainless Only) |
|
$ 122.86 | |||||
| 5 | W10168884 | Trim, Rear (stainless Only) |
|
$ 149.79 | |||||
| 6 | 8004P093-60 | Support, Element |
|
$ 10.61 | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 8 | 3604F406-51 | Shield, Heat |
|
- | |||||
| 9 | 7427P087-60 | Fan, Cooling Pull |
|
- | |||||
| 10 | 7403P227-60 | Thermostat, Snap |
|
$ 69.56 | |||||
| 11 | 4011F516-51 | Box, Burner |
|
$ 49.50 | |||||
| 12 | 3601F369-51 | Baffle,heat Shield |
|
- | |||||
| 13 | 8507P200-60 | Board, Control |
|
$ 303.56 |
