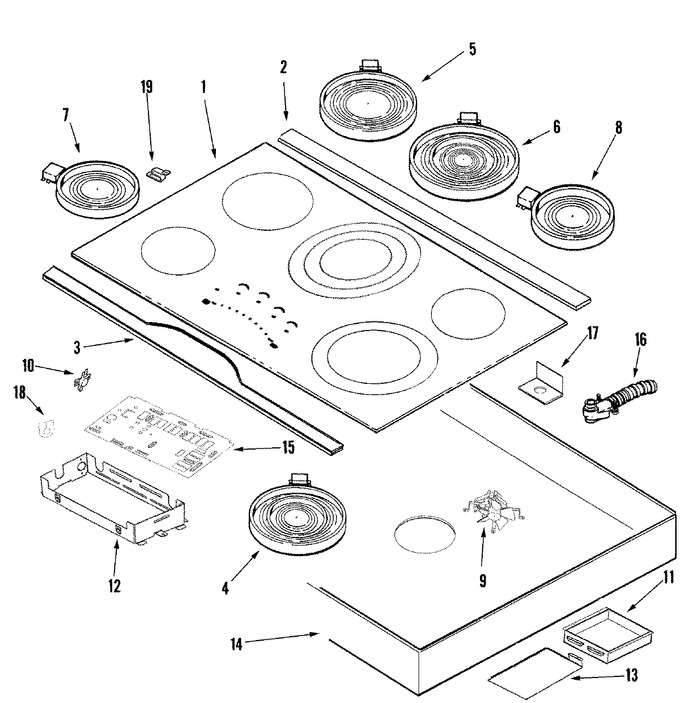

01 - Supplemental Information
02 - Top Assembly/body
03 - Wiring Information
04 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 74010155 | Glass Top Assembly (wht) | 10 |
|
- | ||||
| 4 | W10823717 | Element, Dual (3000/1400w) (Replaces: 74010156) | 10 |
|
Immediately | $ 326.24 | |||
| 5 | WP74010157 | Element (1800w) (Replaces: 74010157) | 10 |
|
$ 262.81 | ||||
| 6 | W10823718 | Element, Triple (Replaces: 74010158) | 10 |
|
Immediately | $ 364.59 | |||
| 7 | 74010159 | Element (1200w) | 10 |
|
$ 117.06 | ||||
| 8 | WP74009899 | Element, Warming Zone (Replaces: 74010160) | 10 |
|
$ 153.85 | ||||
| 9 | 74010173 | Fan, Cooling | 10 |
|
$ 283.13 | ||||
| 10 | 7403P227-60 | Thermostat, Snap Acting | 10 |
|
$ 69.56 | ||||
| 11 | 74007836 | Baffle, Bottom | 10 |
|
- | ||||
| 11 | WP71001171 | Screw, Ground (Replaces: 71001171) | 10 |
|
$ 6.26 | ||||
| 12 | 74010163 | Baffle, Heat Shield | 10 |
|
- | ||||
| 13 | 74010174 | Shield, Heat | 10 |
|
- | ||||
| 14 | 74010281 | Bottom, Burner Box | 10 |
|
- | ||||
| 14 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 15 | 74010165 | Board, Control | 10 |
|
- | ||||
| 16 | 74010167 | Conduit Assy. | 10 |
|
- | ||||
| 17 | 74007893 | Bracket, Conduit/harness Asy. | 10 |
|
- | ||||
| 18 | 8008P068-60 | Grommet (Replaces: 74007844) | 10 |
|
$ 14.39 | ||||
| 19 | 74007845 | Support, Element | 10 |
|
- |
