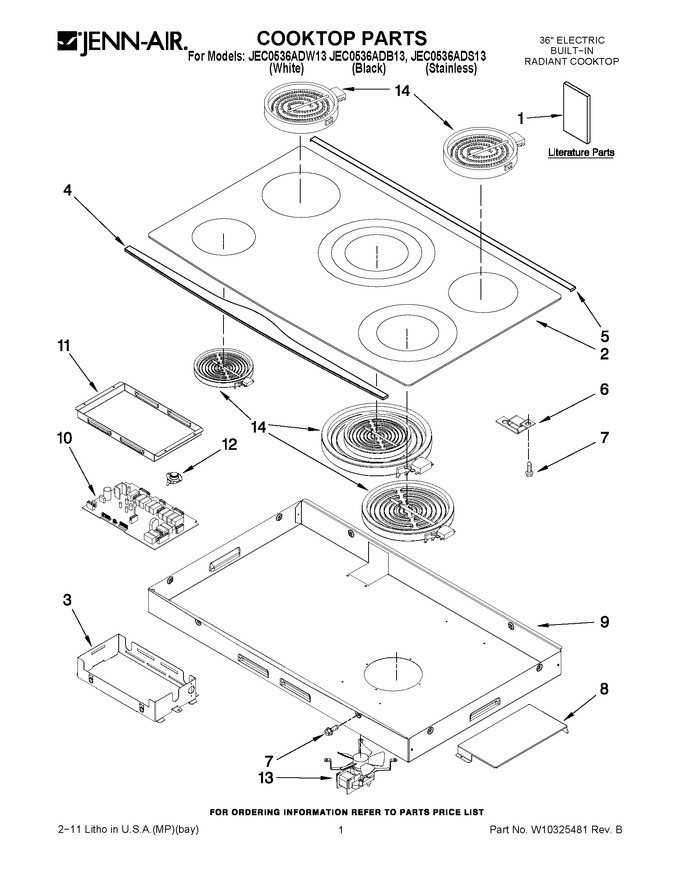

01 - Cooktop Parts
02 - Optional Parts (not Included)
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10267677 | Use & Care Guide |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 1 | 8101P645-60 | Installation Instructions Cooktop |
|
- | |||||
| 1 | W10259197 | Wiring Diagram (english) |
|
- | |||||
| 1 | W10259198 | Wiring Diagram (french) |
|
- | |||||
| 2 | 7920P219-60 | Cooktop, Glass (black) |
|
- | |||||
| 2 | 7920P220-60 | Cooktop, Glass (white) |
|
$ 773.70 | |||||
| 3 | 3601F369-51 | Baffle,heat Shield |
|
- | |||||
| 4 | W10168880 | Trim, Front (stainless Only) |
|
$ 122.86 | |||||
| 5 | W10168884 | Trim, Rear (stainless Only) |
|
$ 149.79 | |||||
| 6 | 8004P093-60 | Support, Ceramic Element |
|
$ 10.61 | |||||
| 7 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.04 | ||||
| 8 | 3604F406-51 | Shield, Fan Cover |
|
- | |||||
| 9 | 4011F516-51 | Box, Burner |
|
$ 49.50 | |||||
| 10 | 8507P200-60 | Board, Control |
|
$ 303.56 | |||||
| 11 | 3601F384-51 | Baffle, Bottom |
|
$ 46.34 | |||||
| 12 | 7403P227-60 | Thermostat, Snap |
|
$ 69.56 | |||||
| 13 | 7427P087-60 | Fan, Cooling Pull |
|
- | |||||
| 14 | WP74009899 | Element, Surface (element, Warming Rr) (Replaces: 7406P408-60) |
|
$ 153.85 | |||||
| 14 | W10259199 | Element, Surface (1400/3000w Dual Rf) |
|
$ 191.96 | |||||
| 14 | W10823711 | Element, Surface (1200w Lf) (Replaces: 8523698) |
|
Immediately | $ 183.95 | ||||
| 14 | W10260350 | Element, Surface (2700/2000/1000w Center) |
|
$ 192.93 | |||||
| 14 | W10823698 | Element, Surface (1800w Lr) (Replaces: 7406P421-60) |
|
Immediately | $ 175.61 |
